admin.c File Reference

Unified administration and monitoring controller implementation. More...

#include "csilk/app/admin.h"
#include <stdatomic.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <time.h>
#include <unistd.h>
#include "cJSON.h"
#include "csilk/core/internal.h"

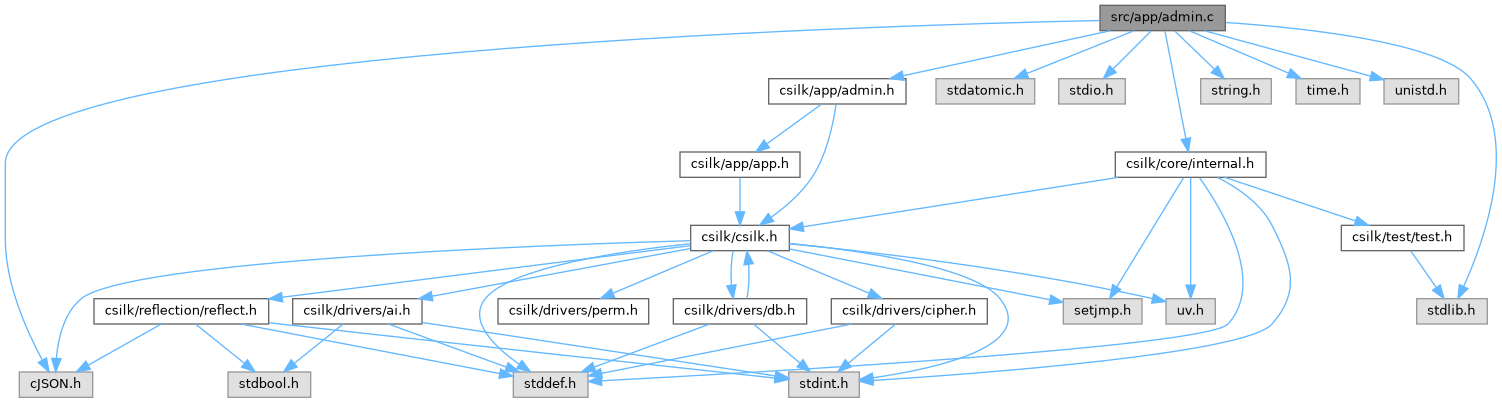

Include dependency graph for admin.c:

Functions
uint64_t	atomic_load_http_requests (void)
uint64_t	atomic_load_http_duration (void)
static void	admin_ui_handler (csilk_ctx_t *c)
	Helper to serve the admin UI HTML.
static void	admin_stats_handler (csilk_ctx_t *c)
	Aggregates system-wide statistics into a JSON response.
static void	admin_topology_handler (csilk_ctx_t *c)
	Returns the router topology for graph visualization.
static void	admin_profiler_handler (csilk_ctx_t *c)
	Simple profiler placeholder (Flamegraph data source).
static void	admin_ws_handler (csilk_ctx_t *c)
	WebSocket handler that streams multiplexed events.
void	csilk_admin_serve (csilk_app_t *app, const char *app_path)
	Register administration routes to an application.
void	csilk_admin_serve_secure (csilk_app_t *app, const char *app_path, csilk_handler_t auth_middleware)
	Register administration routes with a secure middleware.

Variables
static uint64_t	last_req_count = 0
static uint64_t	last_check_time = 0

Detailed Description

Unified administration and monitoring controller implementation.

Function Documentation

admin_profiler_handler()

static void admin_profiler_handler ( csilk_ctx_t *  c )

static

Simple profiler placeholder (Flamegraph data source).

admin_stats_handler()

static void admin_stats_handler ( csilk_ctx_t *  c )

static

Aggregates system-wide statistics into a JSON response.

admin_topology_handler()

static void admin_topology_handler ( csilk_ctx_t *  c )

static

Returns the router topology for graph visualization.

admin_ui_handler()

static void admin_ui_handler ( csilk_ctx_t *  c )

static

Helper to serve the admin UI HTML.

admin_ws_handler()

static void admin_ws_handler ( csilk_ctx_t *  c )

static

WebSocket handler that streams multiplexed events.

atomic_load_http_duration()

uint64_t atomic_load_http_duration ( void  )

extern

atomic_load_http_requests()

uint64_t atomic_load_http_requests ( void  )

extern

csilk_admin_serve()

void csilk_admin_serve	(	csilk_app_t *	app,
		const char *	path
	)

Register administration routes to an application.

This function registers several routes under the given path:

• GET <path> : Serves the HTML dashboard UI.
• GET <path>/stats : Returns a JSON snapshot of all system metrics.
• GET <path>/ws : WebSocket endpoint for real-time event streaming.

Parameters

app	The application handle.
path	The base URL path for the admin panel (e.g., "/admin").

Note

Requires the server to be running and WebSocket support enabled.

csilk_admin_serve_secure()

void csilk_admin_serve_secure	(	csilk_app_t *	app,
		const char *	app_path,
		csilk_handler_t	auth_middleware
	)

Register administration routes with a secure middleware.

Register protected administration routes to an application.

This implementation creates a new route group for the admin panel, applying an optional authentication middleware. This ensures that sensitive metrics and real-time data are only accessible to authorized users.

Parameters

app	The high-level application handle.
app_path	The base URL path for the admin panel (e.g., "/admin").
auth_middleware	Optional handler function for authentication.

Variable Documentation

last_check_time

uint64_t last_check_time = 0

static

last_req_count

uint64_t last_req_count = 0

static
