ai.h File Reference

Unified pluggable interface for AI/LLM service integration. More...

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

Include dependency graph for ai.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	csilk_ai_stats_t
	AI Engine statistics. More...
struct	csilk_ai_message_t
	A single message in a chat conversation. More...
struct	csilk_ai_tool_function_t
	A function tool definition for the AI model. More...
struct	csilk_ai_tool_t
	A tool that can be called by the model. More...
struct	csilk_ai_tool_call_t
	a tool call requested by the model. More...
struct	csilk_ai_chat_request_t
	Request parameters for chat completion. More...
struct	csilk_ai_chat_response_t
	Response data from a chat completion. More...
struct	csilk_ai_embeddings_response_t
	Response data for embeddings. More...
struct	csilk_ai_driver_t
	Virtual function table implemented by each AI provider backend. More...
struct	csilk_ai_context_t
	Helper to manage conversation context and history. More...

Typedefs
typedef void(*	csilk_ai_stream_cb) (const char *chunk, void *user_data)
	Callback for streaming mode.
typedef void(*	csilk_ai_chat_async_cb) (int status, csilk_ai_chat_response_t *res, void *user_data)
	Callback for asynchronous chat completion.
typedef void(*	csilk_ai_embeddings_async_cb) (int status, csilk_ai_embeddings_response_t *res, void *user_data)
	Callback for asynchronous embeddings.

Functions
void	csilk_ai_get_stats (csilk_ai_stats_t *stats)
	Get current AI engine statistics.
char *	csilk_ai_stats_to_json (const csilk_ai_stats_t *stats)
	Convert AI statistics to a JSON string.
void	csilk_ai_register_monitor (void *c)
	Register a WebSocket monitor for real-time AI events.
csilk_ai_t *	csilk_ai_new (const char *driver_name, const char *api_key, const char *base_url)
	Create a new AI instance with a specific driver.
int	csilk_ai_chat (csilk_ai_t *ai, const csilk_ai_chat_request_t *req, csilk_ai_chat_response_t *res)
	Perform a chat completion.
void	csilk_ai_chat_async (csilk_ai_t *ai, const csilk_ai_chat_request_t *req, csilk_ai_chat_async_cb cb, void *user_data)
	Perform an asynchronous chat completion.
int	csilk_ai_embeddings (csilk_ai_t *ai, const char *model, const char **input, size_t count, csilk_ai_embeddings_response_t *res)
	Generate embeddings for the given input strings.
void	csilk_ai_embeddings_async (csilk_ai_t *ai, const char *model, const char **input, size_t count, csilk_ai_embeddings_async_cb cb, void *user_data)
	Generate embeddings asynchronously.
void	csilk_ai_free (csilk_ai_t *ai)
	Free an AI handle.
void	csilk_ai_chat_response_free (csilk_ai_chat_response_t *res)
	Free a chat response structure.
void	csilk_ai_embeddings_response_free (csilk_ai_embeddings_response_t *res)
	Free an embeddings response structure.
void	csilk_ai_register_driver (const csilk_ai_driver_t *driver)
	Register a new AI driver.
csilk_ai_context_t *	csilk_ai_context_new (size_t max_history)
	Initialize a new conversation context.
void	csilk_ai_context_add (csilk_ai_context_t *ctx, const char *role, const char *content)
	Add a message to the context.
void	csilk_ai_context_clear (csilk_ai_context_t *ctx)
	Clear all messages from the context.
void	csilk_ai_context_free (csilk_ai_context_t *ctx)
	Free a conversation context.

Detailed Description

Unified pluggable interface for AI/LLM service integration.

Provides a provider-agnostic abstraction for chat completions, embeddings, streaming, and tool/function calling. Supports multiple backend drivers (OpenAI, Claude, Ollama, etc.) registered via csilk_ai_register_driver.

Architecture

The AI layer has three tiers:

1. Driver — a csilk_ai_driver_t vtable implementing the actual HTTP/REST calls to a specific provider.
2. Instance — created by csilk_ai_new(), wraps a driver + API config.
3. Context — csilk_ai_context_t manages conversation history with a sliding-window FIFO (for maintaining chat context across turns).

Thread Safety

The driver functions are synchronous by default. Asynchronous variants (csilk_ai_chat_async) offload work to libuv's thread pool and invoke the callback on the main event loop, making them safe for use from request handlers.

Copyright

MIT License

---

Data Structure Documentation

csilk_ai_stats_t

struct csilk_ai_stats_t

AI Engine statistics.

Data Fields
uint64_t	completion_tokens	Total completion tokens.
uint64_t	duration_us_total	Cumulative duration in microseconds.
uint64_t	errors_total	Total failed AI calls.
uint64_t	prompt_tokens	Total prompt tokens.
uint64_t	requests_total	Total chat/embeddings calls.
uint64_t	tokens_total	Total tokens (prompt + completion).

csilk_ai_message_t

struct csilk_ai_message_t

A single message in a chat conversation.

Data Fields
const char *	content	Message text content.
const char *	role	Message role (e.g., "system", "user", "assistant").

csilk_ai_tool_function_t

struct csilk_ai_tool_function_t

A function tool definition for the AI model.

Data Fields
const char *	description	Description of what the function does.
const char *	name	Function name.
void *	parameters_json	JSON Schema of parameters (cJSON*).

csilk_ai_tool_t

struct csilk_ai_tool_t

A tool that can be called by the model.

Collaboration diagram for csilk_ai_tool_t:

Data Fields
csilk_ai_tool_function_t	function
const char *	type	Currently only "function" is supported.

csilk_ai_tool_call_t

struct csilk_ai_tool_call_t

a tool call requested by the model.

Data Fields
char *	arguments	JSON-formatted arguments string.
char *	id	Unique call ID.
char *	name	Function name to call.

csilk_ai_chat_request_t

struct csilk_ai_chat_request_t

Request parameters for chat completion.

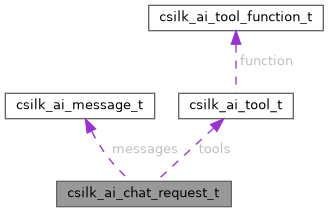

Collaboration diagram for csilk_ai_chat_request_t:

Data Fields
double	frequency_penalty	Penalty for repetitive tokens (-2.0 to 2.0).
int	max_tokens	Maximum tokens to generate.
size_t	message_count	Number of messages in the array.
csilk_ai_message_t *	messages	Array of conversation messages.
const char *	model	Provider-specific model name (e.g., "gpt-4").
csilk_ai_stream_cb	on_chunk	Callback invoked for each chunk in stream mode.
double	presence_penalty	Penalty for new topics (-2.0 to 2.0).
const char **	stop	Array of stop sequences.
size_t	stop_count	Number of stop sequences.
bool	stream	Enable streaming mode.
double	temperature	Sampling temperature (0.0 to 2.0).
int	timeout_ms	Request timeout in milliseconds (0 for default).
const char *	tool_choice	"none", "auto", or "required".
size_t	tool_count	Number of tools.
csilk_ai_tool_t *	tools	Available tools for the model.
double	top_p	Nucleus sampling probability.
const char *	user	Unique identifier for the end-user.
void *	user_data	User context for the stream callback.

csilk_ai_chat_response_t

struct csilk_ai_chat_response_t

Response data from a chat completion.

Collaboration diagram for csilk_ai_chat_response_t:

Data Fields
int	completion_tokens	Tokens used in the generation.
char *	content	Generated text content (heap-allocated).
char *	error_message	Detailed error message if call failed (heap-allocated).
int	prompt_tokens	Tokens used in the prompt.
char *	raw_response	Full raw JSON response (optional, heap-allocated).
size_t	tool_call_count	Number of tool calls.
csilk_ai_tool_call_t *	tool_calls	Array of tool calls (heap-allocated).
int	total_tokens	Total tokens used.

csilk_ai_embeddings_response_t

struct csilk_ai_embeddings_response_t

Response data for embeddings.

Data Fields
size_t	count	Number of vectors in the array.
size_t	dimension	Dimension of a single vector.
char *	error_message
int	prompt_tokens
int	total_tokens
float *	values	Flattened array of vector values.

csilk_ai_context_t

struct csilk_ai_context_t

Helper to manage conversation context and history.

Collaboration diagram for csilk_ai_context_t:

Data Fields
size_t	capacity	Allocated capacity.
size_t	count	Number of messages.
size_t	max_history	Maximum messages to keep (0 for unlimited).
csilk_ai_message_t *	messages	Array of history messages.

Typedef Documentation

csilk_ai_chat_async_cb

typedef void(* csilk_ai_chat_async_cb) (int status, csilk_ai_chat_response_t *res, void *user_data)

Callback for asynchronous chat completion.

csilk_ai_embeddings_async_cb

typedef void(* csilk_ai_embeddings_async_cb) (int status, csilk_ai_embeddings_response_t *res, void *user_data)

Callback for asynchronous embeddings.

csilk_ai_stream_cb

typedef void(* csilk_ai_stream_cb) (const char *chunk, void *user_data)

Callback for streaming mode.

Parameters

chunk	The text content delta.
user_data	User-provided context.

Function Documentation

csilk_ai_chat()

int csilk_ai_chat	(	csilk_ai_t *	ai,
		const csilk_ai_chat_request_t *	req,
		csilk_ai_chat_response_t *	res
	)

Perform a chat completion.

Parameters

ai	AI handle.
req	Chat request parameters.
res	[out] Chat response to populate.

Returns

0 on success, -1 on failure.

Perform a chat completion.

Algorithm:

1. Zero out the response struct for each attempt.
2. Call the driver's chat() implementation.
3. On success (status == 0), return immediately.
4. On failure, check the error message for known transient error patterns (CURL transport errors, HTTP 429 rate limit, 502/503 server errors).
5. If retryable and attempts remain, sleep with exponential backoff (1s, 2s) and retry. Non-retryable errors break immediately.

Parameters

ai	AI engine handle (must not be NULL).
req	Chat request parameters (model, messages, temperature, tools).
res	[out] Receives the chat response, including content, tool calls, and token usage. Zeroed on each retry attempt.

Returns

0 on success, -1 if all retries are exhausted or parameters invalid.

Note

Not thread-safe. The caller must serialize access to the same csilk_ai_t handle.

csilk_ai_chat_async()

void csilk_ai_chat_async	(	csilk_ai_t *	ai,
		const csilk_ai_chat_request_t *	req,
		csilk_ai_chat_async_cb	cb,
		void *	user_data
	)

Perform an asynchronous chat completion.

Note

Uses the framework's internal thread pool. The callback is invoked on the main loop.

Perform an asynchronous chat completion.

Allocates a work request and an async context on the heap, queues the work via uv_queue_work(), and returns immediately. The callback fires on the main loop thread after the driver's chat() completes. The response is valid only during the callback invocation.

Ownership: The caller retains ownership of req. The response res is owned by the async context and is freed after the callback returns. If the caller needs the response beyond the callback, it must deep-copy it.

Parameters

ai	AI engine handle.
req	Chat request (must remain valid until the callback fires).
cb	Completion callback (required).
user_data	Opaque pointer passed through to the callback.

Note

Thread-safe to call from any thread (libuv queues the work). On allocation failure, this is a silent no-op.

csilk_ai_chat_response_free()

void csilk_ai_chat_response_free

(

csilk_ai_chat_response_t *

res

)

Free a chat response structure.

Free a chat response structure.

Parameters

res	Response struct to clean (may be NULL). Safe to call on a zero-initialized struct.

csilk_ai_context_add()

void csilk_ai_context_add	(	csilk_ai_context_t *	ctx,
		const char *	role,
		const char *	content
	)

Add a message to the context.

Note

Strings are duplicated internally.

Add a message to the context.

Algorithm:

1. If the internal message array is full, double its capacity.
2. If max_history > 0 and count >= max_history, remove the oldest message (free its role and content strings, shift remaining messages left via memmove, decrement count).
3. strdup the role and content, append to the message array.

Parameters

ctx	Conversation context.
role	Message role (e.g., "user", "assistant", "system").
content	Message content text.

Note

The role and content strings are deep-copied internally.

csilk_ai_context_clear()

void csilk_ai_context_clear

(

csilk_ai_context_t *

ctx

)

Clear all messages from the context.

Clear all messages from the context.

Parameters

ctx	Conversation context (may be NULL).

csilk_ai_context_free()

void csilk_ai_context_free

(

csilk_ai_context_t *

ctx

)

Free a conversation context.

Free a conversation context.

Parameters

ctx	Context to free (may be NULL).

csilk_ai_context_new()

csilk_ai_context_t * csilk_ai_context_new

(

size_t

max_history

)

Initialize a new conversation context.

Parameters

max_history

Maximum number of messages to keep (FIFO sliding window).

Initialize a new conversation context.

Allocates a context struct that manages a rolling window of message history. When max_history messages are reached, the oldest message is evicted on each new add().

Parameters

max_history

Maximum number of messages to retain (0 = unlimited).

Returns

A new context handle, or NULL on allocation failure.

Note

The caller must free the handle with csilk_ai_context_free().

csilk_ai_embeddings()

int csilk_ai_embeddings	(	csilk_ai_t *	ai,
		const char *	model,
		const char **	input,
		size_t	count,
		csilk_ai_embeddings_response_t *	res
	)

Generate embeddings for the given input strings.

Parameters

ai	AI handle.
model	Model name (e.g., "text-embedding-3-small").
input	Array of strings to embed.
count	Number of strings.
res	[out] Embeddings response to populate.

Returns

0 on success, -1 on failure.

Generate embeddings for the given input strings.

Checks that the driver supports embeddings (optional operation), then delegates to the driver's embeddings() implementation.

Parameters

ai	AI engine handle.
model	Model name (e.g., "text-embedding-3-small").
input	Array of input strings to embed.
count	Number of input strings.
res	[out] Receives the embeddings values and error message.

Returns

0 on success, -1 if the driver lacks embeddings support or parameters are invalid.

Note

Not thread-safe on the same csilk_ai_t handle.

csilk_ai_embeddings_async()

void csilk_ai_embeddings_async	(	csilk_ai_t *	ai,
		const char *	model,
		const char **	input,
		size_t	count,
		csilk_ai_embeddings_async_cb	cb,
		void *	user_data
	)

Generate embeddings asynchronously.

Generate embeddings asynchronously.

Allocates a work request and async context on the heap, queues via uv_queue_work(), and returns immediately. The callback fires on the main loop thread after completion.

Parameters

ai	AI engine handle.
model	Model name.
input	Array of input strings (must remain valid until callback).
count	Number of input strings.
cb	Completion callback (required).
user_data	Opaque pointer passed through to callback.

Note

The response is valid only during the callback invocation. Thread-safe to call from any thread.

csilk_ai_embeddings_response_free()

void csilk_ai_embeddings_response_free

(

csilk_ai_embeddings_response_t *

res

)

Free an embeddings response structure.

Free an embeddings response structure.

Parameters

res	Response struct to clean (may be NULL).

csilk_ai_free()

void csilk_ai_free

(

csilk_ai_t *

ai

)

Free an AI handle.

Free an AI handle.

Parameters

ai	The handle to free (may be NULL).

csilk_ai_get_stats()

void csilk_ai_get_stats

(

csilk_ai_stats_t *

stats

)

Get current AI engine statistics.

Parameters

stats

[out] Pointer to stats struct to populate.

csilk_ai_new()

csilk_ai_t * csilk_ai_new	(	const char *	driver_name,
		const char *	api_key,
		const char *	base_url
	)

Create a new AI instance with a specific driver.

Parameters

driver_name	"openai", "ollama", or other registered driver names.
api_key	API key for the provider (may be NULL for Ollama).
base_url	Optional custom base URL (pass NULL for provider default).

Returns

New AI handle, or NULL if driver not found or init failed.

Create a new AI instance with a specific driver.

On the very first call, lazy-initializes the built-in driver registry (OpenAI and Ollama). Subsequent calls reuse the already-registered drivers. If the named driver is not found or its init() fails, returns NULL.

Parameters

driver_name	Backend name (e.g., "openai", "ollama").
api_key	API key for authentication (e.g., OpenAI API key).
base_url	Optional custom base URL (NULL for driver default).

Returns

Newly allocated csilk_ai_t, or NULL on failure.

Note

The caller owns the returned handle and must free with csilk_ai_free(). On allocation failure, the driver state is freed internally to avoid leaks.

csilk_ai_register_driver()

void csilk_ai_register_driver

(

const csilk_ai_driver_t *

driver

)

Register a new AI driver.

Note

Not thread-safe during registration. Call at startup.

Register a new AI driver.

Parameters

driver

Driver vtable with name, init, chat, embeddings, free.

csilk_ai_register_monitor()

void csilk_ai_register_monitor

(

void *

c

)

Register a WebSocket monitor for real-time AI events.

Parameters

c	Framework context (WebSocket connection).

csilk_ai_stats_to_json()

char * csilk_ai_stats_to_json

(

const csilk_ai_stats_t *

stats

)

Convert AI statistics to a JSON string.

Parameters

stats

Pointer to stats struct.

Returns

Heap-allocated JSON string (must be freed).
