cipher.c File Reference

Default cipher driver implementation (OpenSSL-backed). More...

#include "csilk/drivers/cipher.h"
#include <openssl/err.h>
#include <openssl/evp.h>
#include <openssl/pem.h>
#include <openssl/rsa.h>
#include <openssl/sha.h>
#include <stdint.h>
#include <string.h>

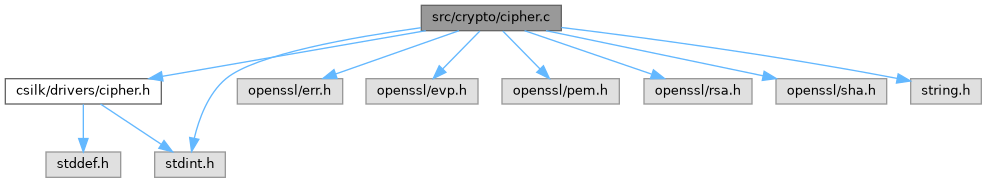

Include dependency graph for cipher.c:

Macros
#define	RSA_PSS_SALTLEN_DIGEST   -1

Functions
static int	default_symmetric_encrypt (const uint8_t *key, size_t key_len, const uint8_t *plaintext, size_t plaintext_len, const uint8_t *iv, size_t iv_len, uint8_t *ciphertext, size_t *ciphertext_len, uint8_t *tag, size_t tag_len)
	AES-256-GCM symmetric encryption.
static int	default_symmetric_decrypt (const uint8_t *key, size_t key_len, const uint8_t *ciphertext, size_t ciphertext_len, const uint8_t *iv, size_t iv_len, const uint8_t *tag, size_t tag_len, uint8_t *plaintext, size_t *plaintext_len)
	AES-256-GCM symmetric decryption with authentication tag verification.
static int	default_generate_keypair (char *public_key, size_t *pub_len, char *private_key, size_t *priv_len)
	Generate an RSA keypair and return PEM-encoded public and private keys.
static EVP_PKEY *	pem_to_pkey (const char *pem, size_t len)
	Internal: parse a PEM-encoded public key into an EVP_PKEY handle.
static EVP_PKEY *	pem_to_privkey (const char *pem, size_t len)
	Internal: parse a PEM-encoded private key into an EVP_PKEY handle.
static int	default_asymmetric_encrypt (const char *public_key, size_t pub_len, const uint8_t *plaintext, size_t plaintext_len, uint8_t *ciphertext, size_t *ciphertext_len)
	RSA-OAEP asymmetric encryption.
static int	default_asymmetric_decrypt (const char *private_key, size_t priv_len, const uint8_t *ciphertext, size_t ciphertext_len, uint8_t *plaintext, size_t *plaintext_len)
	RSA-OAEP asymmetric decryption.
static int	default_sign (const char *private_key, size_t priv_len, const uint8_t *data, size_t data_len, uint8_t *signature, size_t *sig_len)
	RSA-PSS digital signature generation.
static int	default_verify (const char *public_key, size_t pub_len, const uint8_t *data, size_t data_len, const uint8_t *signature, size_t sig_len)
	RSA-PSS digital signature verification.

Variables
csilk_cipher_driver_t	csilk_default_cipher_driver
	Default cipher driver vtable mapping all operations to the OpenSSL-backed implementations above.

Detailed Description

Default cipher driver implementation (OpenSSL-backed).

Architecture: Provides a concrete implementation of the abstract csilk_cipher_driver_t interface using OpenSSL EVP primitives. This module is the default driver installed by the cipher subsystem. All functions are stateless and thread-safe (OpenSSL is expected to have been configured with locking callbacks at process start).

Supported operations:

• AES-256-GCM symmetric encrypt/decrypt (authenticated encryption)
• RSA-OAEP asymmetric encrypt/decrypt (with SHA-256)
• RSA-PSS sign/verify (with SHA-256)
• RSA keypair generation (PEM-encoded)

Copyright

MIT License

Macro Definition Documentation

RSA_PSS_SALTLEN_DIGEST

#define RSA_PSS_SALTLEN_DIGEST   -1

Function Documentation

default_asymmetric_decrypt()

static int default_asymmetric_decrypt ( const char *  private_key, size_t  priv_len, const uint8_t *  ciphertext, size_t  ciphertext_len, uint8_t *  plaintext, size_t *  plaintext_len  )

static

RSA-OAEP asymmetric decryption.

Algorithm:

1. Parse the PEM private key into an EVP_PKEY.
2. Create an EVP_PKEY_CTX for decryption.
3. Configure RSA-OAEP padding with SHA-256 (matching encrypt).
4. Call EVP_PKEY_decrypt to recover the plaintext.

Parameters

private_key	PEM-encoded RSA private key.
priv_len	Length of private_key string.
ciphertext	Input ciphertext (must equal RSA key size).
ciphertext_len	Length of ciphertext.
plaintext	[out] Output buffer for decrypted data.
plaintext_len	[in/out] Input: buffer capacity. Output: plaintext len.

Returns

0 on success, -1 on failure (wrong key, tampered data, or params).

default_asymmetric_encrypt()

static int default_asymmetric_encrypt ( const char *  public_key, size_t  pub_len, const uint8_t *  plaintext, size_t  plaintext_len, uint8_t *  ciphertext, size_t *  ciphertext_len  )

static

RSA-OAEP asymmetric encryption.

Algorithm:

1. Parse the PEM public key into an EVP_PKEY.
2. Create an EVP_PKEY_CTX for encryption.
3. Configure RSA-OAEP padding with SHA-256 for both the OAEP hash and the MGF1 mask generation function.
4. Call EVP_PKEY_encrypt to produce the ciphertext.

Parameters

public_key	PEM-encoded RSA public key.
pub_len	Length of public_key string.
plaintext	Input plaintext (max ~190 bytes for 2048-bit RSA).
plaintext_len	Length of plaintext.
ciphertext	[out] Output buffer for encrypted data.
ciphertext_len	[in/out] Input: buffer capacity. Output: ciphertext len.

Returns

0 on success, -1 on failure.

Note

The ciphertext length will be equal to the RSA key size (e.g., 256 bytes for a 2048-bit key).

default_generate_keypair()

static int default_generate_keypair ( char *  public_key, size_t *  pub_len, char *  private_key, size_t *  priv_len  )

static

Generate an RSA keypair and return PEM-encoded public and private keys.

Algorithm:

1. Create an EVP_PKEY_CTX for RSA key generation.
2. Initialize keygen with CSILK_RSA_KEY_BITS (2048 or 4096).
3. Generate the keypair.
4. Write the public key to a memory BIO in PEM format.
5. Write the private key (unencrypted) to a memory BIO in PEM format.
6. Copy the PEM strings into the caller's buffers.

Parameters

public_key	[out] Buffer for PEM-encoded public key.
pub_len	[in/out] Input: buffer capacity. Output: actual key length including null terminator.
private_key	[out] Buffer for PEM-encoded private key.
priv_len	[in/out] Input: buffer capacity. Output: actual key length including null terminator.

Returns

0 on success, -1 on failure (allocation, keygen, or buffer too small).

Note

If the output buffers are too small, the function sets *pub_len and *priv_len to the required sizes and returns -1.

default_sign()

static int default_sign ( const char *  private_key, size_t  priv_len, const uint8_t *  data, size_t  data_len, uint8_t *  signature, size_t *  sig_len  )

static

RSA-PSS digital signature generation.

Algorithm:

1. Parse the PEM private key into an EVP_PKEY.
2. Create an EVP_MD_CTX and initialize for signing with SHA-256.
3. Configure RSA-PSS padding with salt length equal to digest length.
4. Call EVP_DigestSign which internally hashes the data and signs.

Parameters

private_key	PEM-encoded RSA private key.
priv_len	Length of private_key string.
data	Input data to sign.
data_len	Length of data.
signature	[out] Output buffer for the signature.
sig_len	[in/out] Input: buffer capacity. Output: signature len.

Returns

0 on success, -1 on failure.

default_symmetric_decrypt()

static int default_symmetric_decrypt ( const uint8_t *  key, size_t  key_len, const uint8_t *  ciphertext, size_t  ciphertext_len, const uint8_t *  iv, size_t  iv_len, const uint8_t *  tag, size_t  tag_len, uint8_t *  plaintext, size_t *  plaintext_len  )

static

AES-256-GCM symmetric decryption with authentication tag verification.

Algorithm:

1. Create an EVP_CIPHER_CTX for AES-256-GCM.
2. Initialize for decryption with EVP_DecryptInit_ex.
3. Feed ciphertext via EVP_DecryptUpdate to produce plaintext.
4. Set the expected authentication tag via EVP_CTRL_GCM_SET_TAG.
5. Finalize with EVP_DecryptFinal_ex — this fails if the tag does not match (tampered ciphertext or wrong key).

Parameters

key	256-bit AES key (must be 32 bytes).
key_len	Must be 32.
ciphertext	Input encrypted data.
ciphertext_len	Length of ciphertext.
iv	96-bit IV (must be 12 bytes).
iv_len	Must be 12.
tag	128-bit authentication tag to verify (16 bytes).
tag_len	Must be 16.
plaintext	[out] Output buffer for decrypted data.
plaintext_len	[out] Receives the plaintext length.

Returns

0 on success, -1 on authentication failure or invalid params.

Note

A return of -1 does NOT distinguish between "wrong key", "tampered ciphertext", or "invalid parameters".

default_symmetric_encrypt()

static int default_symmetric_encrypt ( const uint8_t *  key, size_t  key_len, const uint8_t *  plaintext, size_t  plaintext_len, const uint8_t *  iv, size_t  iv_len, uint8_t *  ciphertext, size_t *  ciphertext_len, uint8_t *  tag, size_t  tag_len  )

static

AES-256-GCM symmetric encryption.

Algorithm:

1. Create an EVP_CIPHER_CTX for AES-256-GCM.
2. Call EVP_EncryptInit_ex with the key and IV (96-bit nonce).
3. Feed plaintext via EVP_EncryptUpdate to produce ciphertext.
4. Finalize with EVP_EncryptFinal_ex (produces no extra ciphertext for GCM, but validates internal state).
5. Retrieve the 128-bit authentication tag via EVP_CTRL_GCM_GET_TAG.

Parameters

key	256-bit (32-byte) AES key.
key_len	Must be 32.
plaintext	Input plaintext.
plaintext_len	Length of plaintext.
iv	96-bit (12-byte) initialization vector.
iv_len	Must be 12.
ciphertext	[out] Output buffer for encrypted data (must be at least plaintext_len + 16 bytes).
ciphertext_len	[out] Receives the ciphertext length.
tag	[out] 128-bit (16-byte) authentication tag.
tag_len	Must be 16.

Returns

0 on success, -1 if parameters are invalid or encryption fails.

Note

The output buffer must be large enough for ciphertext + tag. Thread-safe provided OpenSSL is configured with locking.

default_verify()

static int default_verify ( const char *  public_key, size_t  pub_len, const uint8_t *  data, size_t  data_len, const uint8_t *  signature, size_t  sig_len  )

static

RSA-PSS digital signature verification.

Algorithm:

1. Parse the PEM public key into an EVP_PKEY.
2. Create an EVP_MD_CTX and initialize for verification with SHA-256.
3. Configure RSA-PSS padding with salt length equal to digest length.
4. Call EVP_DigestVerify which internally hashes the data and verifies the signature.

Parameters

public_key	PEM-encoded RSA public key.
pub_len	Length of public_key string.
data	Original signed data.
data_len	Length of data.
signature	Signature to verify.
sig_len	Length of signature.

Returns

0 on valid signature, -1 on invalid signature or error.

pem_to_pkey()

static EVP_PKEY * pem_to_pkey ( const char *  pem, size_t  len  )

static

Internal: parse a PEM-encoded public key into an EVP_PKEY handle.

Parameters

pem	PEM string buffer.
len	Length of the PEM string.

Returns

New EVP_PKEY with a reference count of 1, or NULL on parse failure.

Note

The caller must free the returned key with EVP_PKEY_free().

pem_to_privkey()

static EVP_PKEY * pem_to_privkey ( const char *  pem, size_t  len  )

static

Internal: parse a PEM-encoded private key into an EVP_PKEY handle.

Parameters

pem	PEM string buffer.
len	Length of the PEM string.

Returns

New EVP_PKEY with a reference count of 1, or NULL on parse failure.

Note

The caller must free the returned key with EVP_PKEY_free().

Variable Documentation

csilk_default_cipher_driver

csilk_cipher_driver_t csilk_default_cipher_driver

Initial value:

= {
    .symmetric_encrypt = default_symmetric_encrypt,
    .symmetric_decrypt = default_symmetric_decrypt,
    .generate_keypair = default_generate_keypair,
    .asymmetric_encrypt = default_asymmetric_encrypt,
    .asymmetric_decrypt = default_asymmetric_decrypt,
    .sign = default_sign,
    .verify = default_verify,
}

Default cipher driver vtable mapping all operations to the OpenSSL-backed implementations above.

Installed by the cipher subsystem as the default driver. Callers can override individual operations by building a custom driver struct with different function pointers for specific needs (e.g., hardware-backed keys).
