internal.h File Reference

Internal framework primitives — crypto, codec, MQ, and dispatch. More...

#include <setjmp.h>
#include <stddef.h>
#include <stdint.h>
#include <uv.h>
#include "csilk/csilk.h"
#include "csilk/test/test.h"

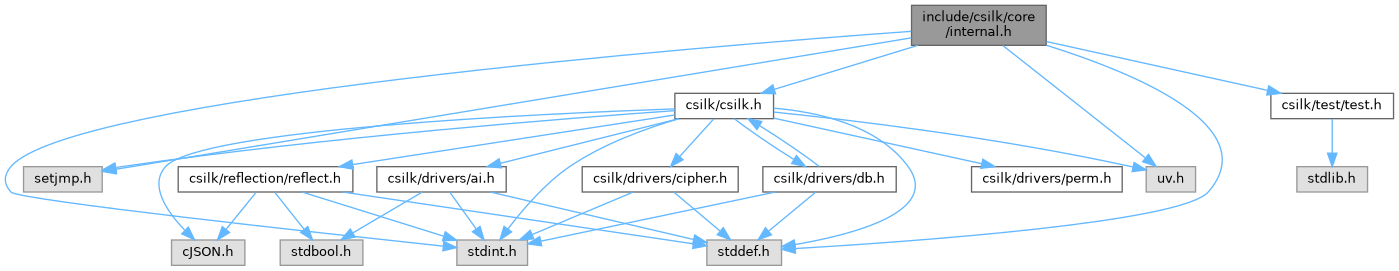

Include dependency graph for internal.h:

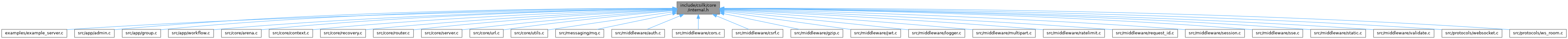

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	csilk_sha1_ctx
	SHA-1 hashing context. More...
struct	csilk_sha256_ctx
	SHA-256 hashing context. More...
struct	csilk_mq_msg_t
	Internal: A single message in the MQ linked-list queue. Messages are heap-allocated and linked via next. More...
struct	csilk_mq_topic_t
	Internal: A topic node in the MQ's linked list of topics. Holds the topic name and its associated middleware + subscriber chain. More...
struct	csilk_mq_t
	Internal: The Message Queue instance. More...
struct	csilk_mq_ctx_t
	Internal: Per-message MQ context passed to middleware and subscribers. More...
struct	csilk_mq_work_ctx_t
	Internal: Context passed to libuv's thread-pool work callback. More...

Functions
void	csilk_sha1_init (csilk_sha1_ctx *context)
	Initialise a SHA-1 hashing context.
void	csilk_sha1_update (csilk_sha1_ctx *context, const uint8_t *data, size_t len)
	Feed data into the SHA-1 hashing context.
void	csilk_sha1_final (csilk_sha1_ctx *context, uint8_t digest[20])
	Finalise the SHA-1 hash and write the 20-byte digest.
void	csilk_sha256_init (csilk_sha256_ctx *context)
	Initialise a SHA-256 hashing context.
void	csilk_sha256_update (csilk_sha256_ctx *context, const uint8_t *data, size_t len)
	Feed data into the SHA-256 hashing context.
void	csilk_sha256_final (csilk_sha256_ctx *context, uint8_t digest[32])
	Finalise the SHA-256 hash and write the 32-byte digest.
void	csilk_hmac_sha256 (const uint8_t *key, size_t key_len, const uint8_t *data, size_t data_len, uint8_t out[32])
	Compute HMAC-SHA256 (keyed-hash message authentication code).
void	csilk_base64_encode (const uint8_t *src, size_t len, char *out)
	Encode raw bytes as a standard Base64 string.
void	csilk_base64url_encode (const uint8_t *src, size_t len, char *out)
	Encode raw bytes as a Base64URL (RFC 4648 §5) string.
int	csilk_base64url_decode (const char *src, uint8_t *out)
	Decode a Base64URL (RFC 4648 §5) string to raw bytes.
void	csilk_ws_parse_frame (csilk_ctx_t *c, const uint8_t *buf, size_t nread)
	Parse an incoming WebSocket frame from the raw TCP stream.
void	_csilk_send_response (csilk_ctx_t *c) __attribute__((weak))
	Internal: Trigger the response send path.
void	_csilk_send_data (csilk_ctx_t *c, const uint8_t *data, size_t len)
	Internal: Send data through the appropriate I/O path.
void	_csilk_hmac_sha256 (csilk_ctx_t *c, const uint8_t *key, size_t key_len, const uint8_t *data, size_t data_len, uint8_t out[32])
	Internal: Compute HMAC-SHA256 using the server's crypto driver (if set) or the built-in software implementation.
void	_csilk_generate_uuid (csilk_ctx_t *c, char buf[37])
	Internal: Generate a random UUID v4 string using the crypto driver (if set) or the built-in /dev/urandom-based implementation.
void *	_csilk_get_internal_client (csilk_ctx_t *c)
	Get the internal client connection object.
void	_csilk_set_internal_client (csilk_ctx_t *c, void *client)
	Set the internal client connection object.
int	_csilk_symmetric_encrypt (csilk_ctx_t *c, const uint8_t *key, size_t key_len, const uint8_t *plaintext, size_t plaintext_len, const uint8_t *iv, size_t iv_len, uint8_t *ciphertext, size_t *ciphertext_len, uint8_t *tag, size_t tag_len)
	Internal: Symmetric encrypt using the context's cipher driver or the built-in OpenSSL AES-256-GCM implementation.
int	_csilk_symmetric_decrypt (csilk_ctx_t *c, const uint8_t *key, size_t key_len, const uint8_t *ciphertext, size_t ciphertext_len, const uint8_t *iv, size_t iv_len, const uint8_t *tag, size_t tag_len, uint8_t *plaintext, size_t *plaintext_len)
	Internal: Symmetric decrypt using the context's cipher driver or the built-in OpenSSL AES-256-GCM implementation.
int	_csilk_generate_keypair (csilk_ctx_t *c, char *public_key, size_t *pub_len, char *private_key, size_t *priv_len)
	Internal: Generate an RSA-2048 key pair using the context's cipher driver or the built-in OpenSSL implementation.
int	_csilk_asymmetric_encrypt (csilk_ctx_t *c, const char *public_key, size_t pub_len, const uint8_t *plaintext, size_t plaintext_len, uint8_t *ciphertext, size_t *ciphertext_len)
	Internal: Asymmetric encrypt using the context's cipher driver or the built-in OpenSSL RSA-OAEP implementation.
int	_csilk_asymmetric_decrypt (csilk_ctx_t *c, const char *private_key, size_t priv_len, const uint8_t *ciphertext, size_t ciphertext_len, uint8_t *plaintext, size_t *plaintext_len)
	Internal: Asymmetric decrypt using the context's cipher driver or the built-in OpenSSL RSA-OAEP implementation.
int	_csilk_sign (csilk_ctx_t *c, const char *private_key, size_t priv_len, const uint8_t *data, size_t data_len, uint8_t *signature, size_t *sig_len)
	Internal: Sign data using the context's cipher driver or the built-in OpenSSL RSA-PSS implementation.
int	_csilk_verify (csilk_ctx_t *c, const char *public_key, size_t pub_len, const uint8_t *data, size_t data_len, const uint8_t *signature, size_t sig_len)
	Internal: Verify a signature using the context's cipher driver or the built-in OpenSSL RSA-PSS implementation.
size_t	csilk_url_decode (char *str)
	URL-decode a percent-encoded string in-place.
void	csilk_generate_uuid (char *buf)
	Generate a random UUID v4 string (standalone, no context needed).
csilk_mq_t *	_csilk_mq_new (uv_loop_t *loop)
	Internal: Create a new MQ instance bound to a libuv loop.
void	_csilk_mq_free (csilk_mq_t *mq)
	Internal: Destroy an MQ instance and release all resources.

Detailed Description

Internal framework primitives — crypto, codec, MQ, and dispatch.

This header exposes functions and types used internally by the csilk framework. They are NOT part of the public API and may change without notice. External consumers should not rely on them.

Contents

• Hashing: SHA-1 (WebSocket handshake), SHA-256, HMAC-SHA256.
• Encoding: Base64, Base64URL, URL percent-decoding.
• WebSocket: Frame parsing and dispatch for RFC 6455.
• Message Queue: In-process pub/sub with WAL persistence, threading via libuv async handles and mutexes.
• Crypto dispatch: Weak-symbol stubs (_csilk_send_response, _csilk_symmetric_encrypt, etc.) that route through the server's crypto/cipher driver if one is installed, or fall back to built-in software implementations.

  Copyright

  MIT License

---

Data Structure Documentation

csilk_sha1_ctx

struct csilk_sha1_ctx

SHA-1 hashing context.

Holds intermediate state and buffered data during a multi-step SHA-1 computation. Use csilk_sha1_init / _update / _final.

Note

SHA-1 is considered cryptographically weak for security purposes. It is used internally only for WebSocket handshake compliance (RFC 6455). Do not use for security-critical hashing.

Data Fields
uint8_t	buffer[64]	512-bit block buffer for data not yet processed.
uint32_t	count[2]	Total message length in bits (64-bit, split into two 32-bit halves).
uint32_t	state[5]	160-bit intermediate hash state (5 × 32-bit words).

csilk_sha256_ctx

struct csilk_sha256_ctx

SHA-256 hashing context.

Holds intermediate state and buffered data during a multi-step SHA-256 computation. Use csilk_sha256_init / _update / _final.

Data Fields
uint8_t	buffer[64]	512-bit block buffer for data not yet processed.
uint64_t	count	Total message length in bits.
uint32_t	state[8]	256-bit intermediate hash state (8 × 32-bit words).

csilk_mq_msg_t

struct csilk_mq_msg_t

Internal: A single message in the MQ linked-list queue. Messages are heap-allocated and linked via next.

Data Fields
size_t	len	Byte length of payload.
struct csilk_mq_msg_s *	next	Pointer to the next message in the queue (NULL for tail).
void *	payload	Message payload bytes (heap-allocated copy of published data).
char *	topic	NUL-terminated topic string (heap-allocated copy).

csilk_mq_topic_t

struct csilk_mq_topic_t

Internal: A topic node in the MQ's linked list of topics. Holds the topic name and its associated middleware + subscriber chain.

Data Fields
size_t	handler_capacity	Allocated capacity of handlers.
size_t	handler_count	Number of handlers currently registered.
csilk_mq_handler_t *	handlers	Dynamically-grown array of handler function pointers (middleware + subscribers).
char *	name	NUL-terminated topic name (e.g., "user.created").
struct csilk_mq_topic_s *	next	Pointer to the next topic in the linked list.

csilk_mq_s

struct csilk_mq_s

Internal: The Message Queue instance.

Opaque Message Queue (event bus) instance.

Manages the message queue, topic registry, global middleware, and optional WAL persistence. Publishes are thread-safe (guarded by queue_mutex) and are delivered asynchronously on the main event loop via a uv_async_t handle.

Lifecycle

1. Created by _csilk_mq_new(loop).
2. Topics are registered lazily on first subscribe/publish.
3. Each publish enqueues a message (copied), signals the async handle, and optionally appends to the WAL.
4. On the main loop, mq_dispatch processes the queue: global middleware runs first, then topic middleware, then subscribers.
5. Destroyed by _csilk_mq_free() — drains the queue and frees all resources.

Not intended for direct manipulation by user code.

Provides an in-process pub/sub system built on libuv async handles. Thread-safe publishing allows worker threads to send messages to the main event loop. The full lifecycle is:

1. Retrieve via csilk_server_get_mq (created lazily).
2. Register middleware (csilk_mq_use) and subscribers (csilk_mq_subscribe).
3. Publish from any thread (csilk_mq_publish — payload is copied).
4. Optionally enable WAL persistence (csilk_mq_set_persistence).
5. Destroyed automatically when the server is freed.

Supports middleware chains, persistence via WAL, and background offloading to libuv's thread pool.

Provides an in-process pub/sub system built on libuv async handles. Thread-safe publishing allows worker threads to send messages to the main event loop. Supports middleware chains, persistence via WAL, and background offloading.

Collaboration diagram for csilk_mq_t:

Data Fields
uv_async_t	async_handle	libuv async handle for bridging worker-thread publishes into the main loop.
uint64_t	delivered_total	Total messages delivered.
uint64_t	failed_total	Total messages failed.
csilk_mq_handler_t *	global_middlewares	Array of global middleware (intercepts every topic).
size_t	global_mw_capacity	Allocated capacity of global_middlewares.
size_t	global_mw_count	Number of global middleware handlers registered.
size_t	monitor_capacity	Monitor array capacity.
size_t	monitor_count	Number of monitors.
uv_mutex_t	monitor_mutex	Protects monitor array.
csilk_ctx_t **	monitors	WebSocket monitor connections.
uint64_t	published_total	Total messages published.
uint32_t	queue_depth	Current messages in memory.
csilk_mq_msg_t *	queue_head	Head of the pending-message linked list.
uv_mutex_t	queue_mutex	Mutex guarding the message linked list.
csilk_mq_msg_t *	queue_tail	Tail of the pending-message linked list.
csilk_mq_topic_t *	topics	Linked list of registered topics.
uv_file	wal_fd	File descriptor for the Write-Ahead Log, or -1 if disabled.
uv_mutex_t	wal_mutex	Mutex guarding WAL append operations.
char *	wal_path	Path to the WAL file (heap-allocated copy, NULL if disabled).

csilk_mq_ctx_s

struct csilk_mq_ctx_s

Internal: Per-message MQ context passed to middleware and subscribers.

Opaque Message Queue context.

Contains the resolved handler chain for the current topic and tracks the current position in the chain.

Created per-message and passed to middleware and subscriber handlers. Provides access to the topic, payload, and chain-control functions. Valid only during the handler invocation — do not store the pointer.

Collaboration diagram for csilk_mq_ctx_t:

Data Fields
int	aborted	Non-zero if csilk_mq_abort was called.
size_t	handler_count	Total number of handlers in handlers.
int	handler_index	Index of the next handler to invoke.
csilk_mq_handler_t *	handlers	Combined handler array (global mw + topic mw + subscribers).
csilk_mq_t *	mq	Owning MQ instance.
csilk_mq_msg_t *	msg	The message being processed.

csilk_mq_work_ctx_t

struct csilk_mq_work_ctx_t

Internal: Context passed to libuv's thread-pool work callback.

Carries the topic, payload, and worker function pointer for background message offloading.

Data Fields
csilk_mq_worker_t	handler	User-provided worker function.
size_t	len	Byte length of payload.
void *	payload	Payload data (heap-allocated copy).
uv_work_t	req	libuv work request (must be first for casting).
char *	topic	Topic string (heap-allocated copy).

Function Documentation

_csilk_asymmetric_decrypt()

int _csilk_asymmetric_decrypt	(	csilk_ctx_t *	c,
		const char *	private_key,
		size_t	priv_len,
		const uint8_t *	ciphertext,
		size_t	ciphertext_len,
		uint8_t *	plaintext,
		size_t *	plaintext_len
	)

Internal: Asymmetric decrypt using the context's cipher driver or the built-in OpenSSL RSA-OAEP implementation.

Parameters

	c	Request context (for driver lookup, may be NULL).
	private_key	PEM-encoded RSA private key.
	priv_len	Private key length.
	ciphertext	Data to decrypt (typically 256 bytes for RSA-2048).
	ciphertext_len	Ciphertext length.
[out]	plaintext	Output buffer.
[in,out]	plaintext_len	In: capacity, Out: actual length.

Returns

0 on success, -1 on failure.

_csilk_asymmetric_encrypt()

int _csilk_asymmetric_encrypt	(	csilk_ctx_t *	c,
		const char *	public_key,
		size_t	pub_len,
		const uint8_t *	plaintext,
		size_t	plaintext_len,
		uint8_t *	ciphertext,
		size_t *	ciphertext_len
	)

Internal: Asymmetric encrypt using the context's cipher driver or the built-in OpenSSL RSA-OAEP implementation.

Parameters

	c	Request context (for driver lookup, may be NULL).
	public_key	PEM-encoded RSA public key.
	pub_len	Public key length.
	plaintext	Data to encrypt (max ~190 bytes for RSA-2048).
	plaintext_len	Plaintext length.
[out]	ciphertext	256-byte output buffer.
[in,out]	ciphertext_len	In: capacity, Out: actual length.

Returns

0 on success, -1 on failure.

_csilk_generate_keypair()

int _csilk_generate_keypair	(	csilk_ctx_t *	c,
		char *	public_key,
		size_t *	pub_len,
		char *	private_key,
		size_t *	priv_len
	)

Internal: Generate an RSA-2048 key pair using the context's cipher driver or the built-in OpenSSL implementation.

Keys are output as PEM-encoded strings.

Parameters

	c	Request context (for driver lookup, may be NULL).
[out]	public_key	PEM public key buffer.
[in,out]	pub_len	In: capacity, Out: actual PEM length (incl. NUL).
[out]	private_key	PEM private key buffer.
[in,out]	priv_len	In: capacity, Out: actual PEM length (incl. NUL).

Returns

0 on success, -1 on failure.

_csilk_generate_uuid()

void _csilk_generate_uuid	(	csilk_ctx_t *	c,
		char	buf[37]
	)

Internal: Generate a random UUID v4 string using the crypto driver (if set) or the built-in /dev/urandom-based implementation.

Parameters

	c	Request context (for driver lookup).
[out]	buf	Output buffer of at least 37 bytes. Receives a NUL-terminated UUID string (e.g., "f81d4fae-7dec-11d0-a765-00a0c91e6bf6").

Internal: Generate a random UUID v4 string using the crypto driver (if set) or the built-in /dev/urandom-based implementation.

This is the late-bound UUID generator. If the context has a crypto driver with a cryptographically secure generate_uuid method (e.g., reading from a hardware RNG or via OpenSSL), that is used. Otherwise falls back to the built-in csilk_generate_uuid() which reads /dev/urandom.

The delegation pattern ensures callers always get the best available randomness source without explicit driver management.

Parameters

c	Request context (may be NULL — falls back to built-in).
buf	[out] 37-byte buffer for the UUID string.

_csilk_get_internal_client()

void * _csilk_get_internal_client

(

csilk_ctx_t *

c

)

Get the internal client connection object.

Opaque pointer used by protocol implementations (WebSocket, SSE).

Parameters

c	Request context.

Returns

Internal client handle.

Get the internal client connection object.

Parameters

c	The request context.

Returns

Opaque pointer to csilk_client_t.

_csilk_hmac_sha256()

void _csilk_hmac_sha256	(	csilk_ctx_t *	c,
		const uint8_t *	key,
		size_t	key_len,
		const uint8_t *	data,
		size_t	data_len,
		uint8_t	out[32]
	)

Internal: Compute HMAC-SHA256 using the server's crypto driver (if set) or the built-in software implementation.

Parameters

	c	Request context (for driver lookup).
	key	HMAC key.
	key_len	Key length.
	data	Input data.
	data_len	Input length.
[out]	out	32-byte HMAC output.

Internal: Compute HMAC-SHA256 using the server's crypto driver (if set) or the built-in software implementation.

This is the "late-bound" version of csilk_hmac_sha256(). It checks whether the request context has a crypto driver installed (e.g., OpenSSL, mbedTLS, or a hardware security module). If so, the driver's accelerated HMAC is used. Otherwise, the built-in software implementation serves as the portable fallback.

This pattern allows the application to use pluggable crypto backends without changing caller code. The default built-in implementation is always available for environments without hardware crypto.

Parameters

c	Request context (may be NULL — falls back to built-in).
key	HMAC key.
key_len	Key length.
data	Input data.
data_len	Data length.
out	[out] 32-byte HMAC output buffer.

_csilk_mq_free()

void _csilk_mq_free

(

csilk_mq_t *

mq

)

Internal: Destroy an MQ instance and release all resources.

Drains the message queue, frees topics, handlers, and the WAL file.

Parameters

mq	The MQ instance to free.

Internal: Destroy an MQ instance and release all resources.

Triggers uv_close() on the async handle if it is not already closing. The actual cleanup (mutexes, WAL, queue, topics) happens in on_mq_close() when the close callback fires.

Parameters

mq	The MQ instance to free (may be NULL).

Note

This is an async operation — the MQ is not freed immediately. Safe to call with NULL.

_csilk_mq_new()

csilk_mq_t * _csilk_mq_new

(

uv_loop_t *

loop

)

Internal: Create a new MQ instance bound to a libuv loop.

Parameters

loop	The libuv event loop.

Returns

A new MQ instance (heap-allocated), or NULL on failure.

_csilk_send_data()

void _csilk_send_data	(	csilk_ctx_t *	c,
		const uint8_t *	data,
		size_t	len
	)

Internal: Send data through the appropriate I/O path.

Routes data through the TLS wrapper if TLS is enabled, or writes directly to the TCP socket otherwise.

Parameters

c	Request context.
data	Bytes to send.
len	Number of bytes to send.

_csilk_send_response()

void _csilk_send_response

(

csilk_ctx_t *

c

)

Internal: Trigger the response send path.

Weak symbol so that tests or custom builds can override it. Called when an async handler finishes and the response should be flushed.

Parameters

c	Request context.

Internal: Trigger the response send path.

This is the central response-serialization function. It constructs the HTTP response bytes in memory and sends them via _csilk_send_data(). The response format is:

HTTP/1.1 <status> <reason>\r
[Transfer-Encoding: chunked\r
] Content-Length: <len>\r
Connection: keep-alive|close\r
<custom headers...>\r
\r
<body>

Response mode selection:

• Normal (Sync): Content-Length is set to body_len; body is appended inline after the header block.
• Chunked (Async): No Content-Length; Transfer-Encoding: chunked is set. Used when the handler calls csilk_next() with is_async = true, meaning it may write response chunks over time.
• File (sendfile): Content-Length is set to file_size; the header is sent via _csilk_send_data, then on_write triggers uv_fs_sendfile for zero-copy file delivery. Only available on non-TLS connections.
• WebSocket (101): Minimal header; the caller manages frames via csilk_ws_send(). See is_websocket branch.

After the response is sent:

• For sendfile: return early, defer cleanup to on_sendfile_complete.
• For keep-alive: restart the idle timer, begin reading next request.
• For close: initiate uv_close.
• Fire CSILK_HOOK_REQUEST_END, clean up context.

Parameters

c	Request context (must have _internal_client set).

_csilk_set_internal_client()

void _csilk_set_internal_client	(	csilk_ctx_t *	c,
		void *	client
	)

Set the internal client connection object.

Parameters

c	Request context.
client	Pointer to csilk_client_t (or mock marker).

Set the internal client connection object.

Parameters

c	The request context.
client	Opaque pointer to csilk_client_t.

_csilk_sign()

int _csilk_sign	(	csilk_ctx_t *	c,
		const char *	private_key,
		size_t	priv_len,
		const uint8_t *	data,
		size_t	data_len,
		uint8_t *	signature,
		size_t *	sig_len
	)

Internal: Sign data using the context's cipher driver or the built-in OpenSSL RSA-PSS implementation.

Parameters

	c	Request context (for driver lookup, may be NULL).
	private_key	PEM-encoded RSA private key.
	priv_len	Private key length.
	data	Data to sign.
	data_len	Data length.
[out]	signature	256-byte signature buffer.
[in,out]	sig_len	In: capacity, Out: actual signature length.

Returns

0 on success, -1 on failure.

_csilk_symmetric_decrypt()

int _csilk_symmetric_decrypt	(	csilk_ctx_t *	c,
		const uint8_t *	key,
		size_t	key_len,
		const uint8_t *	ciphertext,
		size_t	ciphertext_len,
		const uint8_t *	iv,
		size_t	iv_len,
		const uint8_t *	tag,
		size_t	tag_len,
		uint8_t *	plaintext,
		size_t *	plaintext_len
	)

Internal: Symmetric decrypt using the context's cipher driver or the built-in OpenSSL AES-256-GCM implementation.

Parameters

	c	Request context (for driver lookup, may be NULL).
	key	Decryption key (must be 32 bytes for AES-256).
	key_len	Key length.
	ciphertext	Data to decrypt.
	ciphertext_len	Ciphertext length.
	iv	12-byte initialisation vector (nonce).
	iv_len	IV length (must be 12 for GCM).
	tag	16-byte authentication tag.
	tag_len	Tag length (must be 16).
[out]	plaintext	Output buffer (must be at least ciphertext_len bytes).
[in,out]	plaintext_len	In: capacity, Out: actual plaintext length.

Returns

0 on success, -1 on failure (including tag mismatch).

_csilk_symmetric_encrypt()

int _csilk_symmetric_encrypt	(	csilk_ctx_t *	c,
		const uint8_t *	key,
		size_t	key_len,
		const uint8_t *	plaintext,
		size_t	plaintext_len,
		const uint8_t *	iv,
		size_t	iv_len,
		uint8_t *	ciphertext,
		size_t *	ciphertext_len,
		uint8_t *	tag,
		size_t	tag_len
	)

Internal: Symmetric encrypt using the context's cipher driver or the built-in OpenSSL AES-256-GCM implementation.

Parameters

	c	Request context (for driver lookup, may be NULL).
	key	Encryption key (must be 32 bytes for AES-256).
	key_len	Key length.
	plaintext	Data to encrypt.
	plaintext_len	Plaintext length.
	iv	12-byte initialisation vector (nonce).
	iv_len	IV length (must be 12 for GCM).
[out]	ciphertext	Output buffer (must be at least plaintext_len bytes).
[in,out]	ciphertext_len	In: capacity, Out: actual ciphertext length.
[out]	tag	16-byte authentication tag buffer.
	tag_len	Tag buffer size (must be 16).

Returns

0 on success, -1 on failure.

_csilk_verify()

int _csilk_verify	(	csilk_ctx_t *	c,
		const char *	public_key,
		size_t	pub_len,
		const uint8_t *	data,
		size_t	data_len,
		const uint8_t *	signature,
		size_t	sig_len
	)

Internal: Verify a signature using the context's cipher driver or the built-in OpenSSL RSA-PSS implementation.

Parameters

c	Request context (for driver lookup, may be NULL).
public_key	PEM-encoded RSA public key.
pub_len	Public key length.
data	Original signed data.
data_len	Data length.
signature	Signature to verify.
sig_len	Signature length.

Returns

0 on valid signature, -1 on invalid or error.

csilk_base64_encode()

void csilk_base64_encode	(	const uint8_t *	src,
		size_t	len,
		char *	out
	)

Encode raw bytes as a standard Base64 string.

Produces a NUL-terminated Base64 string per RFC 4648 §4.

Parameters

	src	Source byte buffer.
	len	Byte length of src.
[out]	out	Output buffer. Must be at least ((len + 2) / 3) * 4 + 1 bytes to hold the encoded output plus NUL terminator.

Encode raw bytes as a standard Base64 string.

Processes input in 3-byte groups, producing 4 Base64 characters each. Padding with '=' is added if the input length is not a multiple of 3. The output string is null-terminated.

Parameters

src	Input byte buffer.
len	Input length in bytes.
out	[out] Output buffer (must be large enough: 4 * ceil(len/3) + 1).

Note

The caller must ensure out has sufficient capacity. The worst-case output length is ((len + 2) / 3) * 4 + 1.

csilk_base64url_decode()

int csilk_base64url_decode	(	const char *	src,
		uint8_t *	out
	)

Decode a Base64URL (RFC 4648 §5) string to raw bytes.

Handles both padded and unpadded input.

Parameters

	src	NUL-terminated Base64URL string.
[out]	out	Output buffer for decoded bytes (must be at least strlen(src) * 3 / 4 bytes).

Returns

The number of decoded bytes on success, or -1 if the input contains invalid characters or the length is invalid.

Decode a Base64URL (RFC 4648 §5) string to raw bytes.

The decoding process is the inverse of Base64URL encoding:

1. Replace URL-safe characters ('-', '_') with standard Base64 chars ('+', '/').
2. Restore padding '=' characters so the length is a multiple of 4.
3. Decode the resulting standard Base64 using a reverse lookup table.

The reverse lookup maps each Base64 character (A-Z, a-z, 0-9, +, /) back to its 6-bit value. Characters outside this set (including whitespace) cause an immediate error return (-1). The '=' padding character terminates decoding early.

Parameters

src	Base64URL-encoded input string (null-terminated).
out	[out] Output buffer for decoded bytes.

Returns

The number of decoded bytes on success, or -1 on invalid input (non-Base64 characters) or allocation failure.

Note

The caller should ensure out is large enough (at least strlen(src) * 3 / 4 + 1 bytes).

csilk_base64url_encode()

void csilk_base64url_encode	(	const uint8_t *	src,
		size_t	len,
		char *	out
	)

Encode raw bytes as a Base64URL (RFC 4648 §5) string.

Like Base64 but uses '-' and '_' instead of '+' and '/', and omits padding '=' characters.

Parameters

	src	Source byte buffer.
	len	Byte length of src.
[out]	out	Output buffer (must be large enough for the encoded string).

Encode raw bytes as a Base64URL (RFC 4648 §5) string.

Base64URL is the same as standard Base64 but replaces: '+' → '-' (URL-safe, as '+' is treated as space in URL query strings) '/' → '_' (URL-safe, as '/' has path separator meaning) '=' → '' (omitted — padding is unnecessary because length is inferred)

The output is produced by first encoding with standard Base64, then character-substituting and stripping padding.

Parameters

src	Input byte buffer.
len	Input length in bytes.
out	[out] Output buffer (must be large enough for the padded Base64 result + 1).

Note

The output is NOT padded with '='. The length can be inferred from strlen(out).

csilk_generate_uuid()

void csilk_generate_uuid

(

char *

buf

)

Generate a random UUID v4 string (standalone, no context needed).

Uses /dev/urandom or an equivalent OS entropy source.

Parameters

[out]

buf

Output buffer of at least 37 bytes. Populated with a NUL-terminated UUID string.

Generate a random UUID v4 string (standalone, no context needed).

UUID v4 (RFC 4122 §4.4) uses random or pseudo-random bytes for all 128 bits, with specific bits reserved for the version and variant:

Field Bits Purpose time_low 32 Random time_mid 16 Random time_hi_ver 16 Version (4 bits) + random (12 bits) clock_seq_hi 8 Variant (2 bits) + random (6 bits) clock_seq_low 8 Random node 48 Random

Format: xxxxxxxx-xxxx-4xxx-yxxx-xxxxxxxxxxxx where '4' indicates RFC 4122 version 4 (random UUID). where 'y' has the top 2 bits set to '10' (RFC 4122 variant).

Reads 16 random bytes from /dev/urandom. If /dev/urandom is unavailable, falls back to rand() (which is NOT cryptographically secure). Sets the UUID version nibble (4) and variant bits (10xx) per RFC 4122.

Parameters

buf	[out] 37-byte buffer to receive the UUID string (36 hex chars + 4 hyphens + null terminator).

Note

The output format is: xxxxxxxx-xxxx-4xxx-yxxx-xxxxxxxxxxxx

Warning

The fallback to rand() is NOT cryptographically secure. On systems without /dev/urandom, CSILK_CRYPTO_DRIVER should supply randomness.

csilk_hmac_sha256()

void csilk_hmac_sha256	(	const uint8_t *	key,
		size_t	key_len,
		const uint8_t *	data,
		size_t	data_len,
		uint8_t	out[32]
	)

Compute HMAC-SHA256 (keyed-hash message authentication code).

Implements RFC 2104 using SHA-256 as the underlying hash function.

Parameters

	key	Secret key bytes.
	key_len	Byte length of key.
	data	Input data to authenticate.
	data_len	Byte length of data.
[out]	out	32-byte buffer receiving the HMAC output.

Compute HMAC-SHA256 (keyed-hash message authentication code).

HMAC (Hash-based Message Authentication Code) provides both data integrity and authenticity via a shared secret. The construction is:

HMAC(K, m) = SHA256((K' XOR opad) || SHA256((K' XOR ipad) || m))

where:

• K' is the key, hashed with SHA256 if longer than 64 bytes (block size).
• ipad = 0x36 repeated 64 times (inner padding).
• opad = 0x5C repeated 64 times (outer padding).
• || denotes concatenation.

The double-hashing protects against length-extension attacks on the underlying hash function. The ipad/opad XOR ensures that the inner and outer hashes use distinct keys derived from the same secret.

Parameters

key	HMAC secret key.
key_len	Key length in bytes.
data	Input message data.
data_len	Message length in bytes.
out	[out] 32-byte output buffer for the HMAC digest.

csilk_sha1_final()

void csilk_sha1_final	(	csilk_sha1_ctx *	context,
		uint8_t	digest[20]
	)

Finalise the SHA-1 hash and write the 20-byte digest.

After this call the context should not be used without re-initialising.

Parameters

	context	SHA-1 context.
[out]	digest	20-byte array receiving the SHA-1 hash.

Finalise the SHA-1 hash and write the 20-byte digest.

Pads the message according to RFC 3174 (SHA-1 specification), appends the 64-bit message length, and outputs the final hash digest. After this call, the context should not be used without re-initialization.

Parameters

context	SHA-1 context with accumulated data.
digest	[out] 20-byte buffer to receive the hash digest.

csilk_sha1_init()

void csilk_sha1_init

(

csilk_sha1_ctx *

context

)

Initialise a SHA-1 hashing context.

Must be called before the first csilk_sha1_update.

Parameters

context

Pointer to an uninitialised csilk_sha1_ctx.

Initialise a SHA-1 hashing context.

Sets the five state words to the SHA-1 initial constants and resets the bit count to zero. Must be called before the first csilk_sha1_update().

Parameters

context

SHA-1 context to initialize (must not be NULL).

csilk_sha1_update()

void csilk_sha1_update	(	csilk_sha1_ctx *	context,
		const uint8_t *	data,
		size_t	len
	)

Feed data into the SHA-1 hashing context.

Can be called multiple times with arbitrary-length inputs.

Parameters

context	SHA-1 context (initialised).
data	Input bytes.
len	Number of bytes in data.

Feed data into the SHA-1 hashing context.

Processes the input data in 64-byte blocks, updating the context's state. Partial blocks are buffered until the next call or csilk_sha1_final().

Parameters

context	SHA-1 context (initialized via csilk_sha1_init()).
data	Input data buffer.
len	Length of input data in bytes.

Note

Can be called multiple times with successive data chunks.

csilk_sha256_final()

void csilk_sha256_final	(	csilk_sha256_ctx *	context,
		uint8_t	digest[32]
	)

Finalise the SHA-256 hash and write the 32-byte digest.

Parameters

	context	SHA-256 context.
[out]	digest	32-byte array receiving the SHA-256 hash.

Finalise the SHA-256 hash and write the 32-byte digest.

Pads the message according to FIPS 180-4, appends the 64-bit message length, and outputs the final 256-bit (32-byte) hash digest.

Parameters

context	SHA-256 context with accumulated data.
digest	[out] 32-byte buffer to receive the hash digest.

csilk_sha256_init()

void csilk_sha256_init

(

csilk_sha256_ctx *

context

)

Initialise a SHA-256 hashing context.

Parameters

context

Pointer to an uninitialised csilk_sha256_ctx.

Initialise a SHA-256 hashing context.

Sets the eight state words to the SHA-256 initial constants and resets the bit count to zero.

Parameters

context

SHA-256 context to initialize (must not be NULL).

csilk_sha256_update()

void csilk_sha256_update	(	csilk_sha256_ctx *	context,
		const uint8_t *	data,
		size_t	len
	)

Feed data into the SHA-256 hashing context.

Parameters

context	SHA-256 context (initialised).
data	Input bytes.
len	Number of bytes in data.

Feed data into the SHA-256 hashing context.

Processes the input data in 64-byte blocks, updating the context's state. Partial blocks are buffered. Tracks the total bit count for final padding.

Parameters

context	SHA-256 context (initialized via csilk_sha256_init()).
data	Input data buffer.
len	Length of input data in bytes.

csilk_url_decode()

size_t csilk_url_decode

(

char *

str

)

URL-decode a percent-encoded string in-place.

Converts XX sequences to their byte values and '+' to space. The decoded string is always shorter than or equal to the input.

Parameters

str	NUL-terminated percent-encoded string (modified in-place).

Returns

The length of the decoded string (may be shorter than strlen of the original).

Replaces XX sequences with the corresponding byte value and '+' with space. The decoding is done in-place so the output is never longer than the input.

Parameters

str	Null-terminated string to decode (modified in-place).

Returns

The length of the decoded string (may be shorter than original).

Note

If str contains invalid % sequences (e.g., "%ZZ"), they are left as-is.

csilk_ws_parse_frame()

void csilk_ws_parse_frame	(	csilk_ctx_t *	c,
		const uint8_t *	buf,
		size_t	nread
	)

Parse an incoming WebSocket frame from the raw TCP stream.

Processes one or more frames from the receive buffer, dispatches data frames to the registered on_message callback, and handles control frames (ping/pong/close) internally.

Parameters

c	Request context (WebSocket mode must be active).
buf	Raw bytes received from the socket.
nread	Number of bytes in buf.

Parse an incoming WebSocket frame from the raw TCP stream.

Parses the frame header (FIN, opcode, mask, payload length), extracts the payload, applies client-to-server masking if present, and dispatches based on opcode:

• Opcode 0x08 (close): auto-responds with a close frame and closes the TCP connection.
• Other data opcodes: invokes the on_ws_message callback if set.

Parameters

c	The request context.
buf	Raw frame data received from the socket.
nread	Number of bytes available in buf.

Note

Only complete frames should be passed. Partial frames will be silently ignored (insufficient data check returns early).

The payload is heap-allocated, unmasked, and freed after dispatch.
