#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include "cJSON.h"

Include dependency graph for reflect.h:

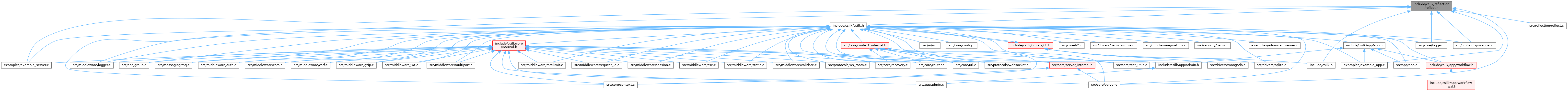

This graph shows which files directly or indirectly include this file:

Data Structures
struct	csilk_field_desc_t
	Descriptor for a single field in a reflected struct. More...

struct	csilk_reflect_entry_t
	Registration entry for a reflected type. More...

Macros
#define	CSILK_USER_TYPE_MAP
	User-extensible type-name mapping.

#define	csilk_type_name(x)
	Map a C expression's type to its reflected string name.

#define	csilk_marshal(ptr) csilk_json_marshal(csilk_type_name(*(ptr)), ptr)
	Convenience macro to serialise a reflected struct to a JSON string.

#define	csilk_unmarshal(json, ptr) csilk_json_unmarshal(csilk_type_name(*(ptr)), json, ptr)
	Convenience macro to deserialise a JSON string into a reflected struct.

#define	CSILK_META_EXPAND(struct_type, field, type_enum, size, arr_len, is_ptr, nested_name) {#field, type_enum, offsetof(struct_type, field), size, arr_len, is_ptr, nested_name},
	Internal helper: expand a single field into a csilk_field_desc_t initialiser.

#define	CSILK_REGISTER_REFLECT(struct_type, map_macro)
	Automatically register a struct for reflection at program startup.

Typedefs
typedef void(*	csilk_reflect_foreach_cb) (const char name, const csilk_reflect_entry_t entry, void *user_data)
	Callback type for csilk_reflect_foreach.

Enumerations
enum	csilk_field_type_t { CSILK_TYPE_INT8 , CSILK_TYPE_UINT8 , CSILK_TYPE_INT16 , CSILK_TYPE_UINT16 , CSILK_TYPE_INT32 , CSILK_TYPE_UINT32 , CSILK_TYPE_INT64 , CSILK_TYPE_UINT64 , CSILK_TYPE_FLOAT , CSILK_TYPE_DOUBLE , CSILK_TYPE_BOOL , CSILK_TYPE_STRING , CSILK_TYPE_STRUCT }
	Supported C data types for struct field reflection. More...

Functions
void	csilk_reflect_init (void)
	Initialise the reflection subsystem.

void	csilk_reflect_register (const char name, const csilk_field_desc_t fields, size_t count)
	Manually register a struct type for reflection.

const csilk_reflect_entry_t *	csilk_reflect_find (const char *name)
	Look up a registered type by name.

void	csilk_reflect_foreach (csilk_reflect_foreach_cb cb, void *user_data)
	Iterate over all registered reflection types.

char *	csilk_json_marshal (const char type_name, const void ptr)
	Serialise a reflected struct to a JSON string.

int	csilk_json_unmarshal (const char type_name, const char json_str, void *ptr)
	Deserialise a JSON string into a reflected struct.

Data Structure Documentation

◆ csilk_field_desc_s

struct csilk_field_desc_s

Descriptor for a single field in a reflected struct.

Forward declaration for the field descriptor struct.

Each field in a registered struct produces one of these descriptors, typically via the CSILK_META_EXPAND macro. The array of descriptors is NULL-terminated (sentinel entry with all-zero fields).

During marshalling, the engine walks the field descriptor array, reads offset bytes from the struct base, and converts the value according to type. During unmarshalling, JSON values are type-checked and written to the same offset. Nested structs (CSILK_TYPE_STRUCT) are resolved lazily by name at marshal/unmarshal time, allowing forward references.

Data Fields
size_t	array_length	Number of elements for fixed-size C arrays (0 = scalar fields or pointer fields).
bool	is_pointer	True if the field is a pointer type (char* or struct pointer). Affects how the field is read/written.
const char *	json_key	JSON key name for this field (used during marshal/unmarshal; e.g., "user_name").
const char *	nested_type_name	For CSILK_TYPE_STRUCT fields, the registered type name of the nested struct (resolved lazily at marshalling time to support forward declarations). NULL for non-struct fields.
size_t	offset	Byte offset of this field from the struct base address (computed via offsetof).
size_t	size	Size in bytes of one element (sizeof(field_type)). For arrays this is the element size, not the total.
csilk_field_type_t	type	Data type enumerator (see csilk_field_type_t).

◆ csilk_reflect_entry_t

struct csilk_reflect_entry_t

Registration entry for a reflected type.

Stored in an internal hash map. Populated via csilk_reflect_register or automatically via the CSILK_REGISTER_REFLECT macro.

Data Fields
size_t	count	Number of valid field descriptors (excluding sentinel).
const csilk_field_desc_t *	fields	NULL-terminated array of field descriptors.
const char *	name	Unique type name string (e.g., "User", "Config").

Macro Definition Documentation

◆ csilk_marshal

#define csilk_marshal ( ptr ) csilk_json_marshal(csilk_type_name(*(ptr)), ptr)

Convenience macro to serialise a reflected struct to a JSON string.

Automatically deduces the type name via csilk_type_name(*(ptr)).

Parameters

ptr	Pointer to a registered struct instance.

Returns: A heap-allocated JSON string (caller must free), or NULL on error.

◆ CSILK_META_EXPAND

#define CSILK_META_EXPAND	(	struct_type,
		field,
		type_enum,
		size,
		arr_len,
		is_ptr,
		nested_name
	)	{#field, type_enum, offsetof(struct_type, field), size, arr_len, is_ptr, nested_name},

Internal helper: expand a single field into a csilk_field_desc_t initialiser.

Used by the map macro passed to CSILK_REGISTER_REFLECT. Each invocation produces one array element.

Parameters

struct_type	The owning struct type name.
field	The field name.
type_enum	csilk_field_type_t enum value for this field.
size	sizeof() the field's type.
arr_len	Array element count (0 for scalar/pointer).
is_ptr	Non-zero if the field is a pointer type.
nested_name	Registered type name for CSILK_TYPE_STRUCT fields (ignored for other types).

◆ CSILK_REGISTER_REFLECT

#define CSILK_REGISTER_REFLECT	(	struct_type,
		map_macro
	)

Value:

    static csilk_field_desc_t struct_type##_meta[] = {                                         \
        map_macro(CSILK_META_EXPAND){NULL, 0, 0, 0, 0, false, NULL}};                          \
    static void __attribute__((constructor)) auto_reg_##struct_type(void)                      \
    {                                                                                          \
        size_t count = (sizeof(struct_type##_meta) / sizeof(csilk_field_desc_t)) - 1;      \
        csilk_reflect_register(#struct_type, struct_type##_meta, count);                   \
    }

Automatically register a struct for reflection at program startup.

Generates a static array of csilk_field_desc_t from the map_macro and registers it via a GCC constructor function (runs before main()). This means no explicit initialisation call is needed — types are available as soon as the program starts.

// Define a struct
typedef struct { int32_t id; char* name; } User;

// Map its fields (one _() invocation per field)
#define USER_MAP(_) \
    _(User, id, CSILK_TYPE_INT32, sizeof(int32_t), 0, false, NULL) \
    _(User, name, CSILK_TYPE_STRING, sizeof(char*), 0, true, NULL)

// Auto-register (this macro invocation must appear at file scope)
CSILK_REGISTER_REFLECT(User, USER_MAP)

Parameters

struct_type	The struct type name (used as the registration key in the reflection hash map and for generating internal symbol names).
map_macro	A macro that applies CSILK_META_EXPAND to each field. Must produce exactly one CSILK_META_EXPAND(struct_type, field, type_enum, size, arr_len, is_ptr, nested_name) call per field.

◆ csilk_type_name

#define csilk_type_name ( x )

Value:

    _Generic((x),                                                                              \
        _Bool: "bool",                                                                         \
        signed char: "int8",                                                                   \
        unsigned char: "uint8",                                                                \
        short: "int16",                                                                        \
        unsigned short: "uint16",                                                              \
        int: "int32",                                                                          \
        unsigned int: "uint32",                                                                \
        long: "int64",                                                                         \
        unsigned long: "uint64",                                                               \
        long long: "int64",                                                                    \
        unsigned long long: "uint64",                                                          \
        float: "float",                                                                        \
        double: "double",                                                                      \
        char*: "string",                                                                       \
        const char*: "string" CSILK_USER_TYPE_MAP,                                             \
        default: "unknown")

Map a C expression's type to its reflected string name.

Uses C11 _Generic dispatch. Extend with CSILK_USER_TYPE_MAP for user-defined types.

Parameters

x	Expression whose static type determines the returned name.

Returns: A string literal naming the type (e.g., "string", "int32").

◆ csilk_unmarshal

#define csilk_unmarshal	(	json,
		ptr
	)	csilk_json_unmarshal(csilk_type_name(*(ptr)), json, ptr)

Convenience macro to deserialise a JSON string into a reflected struct.

Automatically deduces the type name via csilk_type_name(*(ptr)).

Parameters

json	NUL-terminated JSON string.
ptr	Pointer to a registered struct instance (must be pre-allocated).

Returns: 0 on success, -1 on error.

◆ CSILK_USER_TYPE_MAP

#define CSILK_USER_TYPE_MAP

User-extensible type-name mapping.

Define CSILK_USER_TYPE_MAP before including csilk_reflect.h to add custom type-to-string mappings via _Generic. The default map handles char* and const char* as "string".

#define CSILK_USER_TYPE_MAP \
    int: "int32",           \
    double: "double"

Typedef Documentation

◆ csilk_reflect_foreach_cb

typedef void(* csilk_reflect_foreach_cb) (const char *name, const csilk_reflect_entry_t *entry, void *user_data)

Callback type for csilk_reflect_foreach.

Invoked once per registered type.

Parameters

name	The registered type name.
entry	The type descriptor entry.
user_data	Opaque pointer forwarded from csilk_reflect_foreach.

Enumeration Type Documentation

◆ csilk_field_type_t

enum csilk_field_type_t

Supported C data types for struct field reflection.

Each enumerator corresponds to a C type that the reflection system can read/write when marshalling to or from JSON.

Enumerator
CSILK_TYPE_INT8	8-bit signed integer (int8_t / char).
CSILK_TYPE_UINT8	8-bit unsigned integer (uint8_t / unsigned char).
CSILK_TYPE_INT16	16-bit signed integer (int16_t / short).
CSILK_TYPE_UINT16	16-bit unsigned integer (uint16_t / unsigned short).
CSILK_TYPE_INT32	32-bit signed integer (int32_t / int).
CSILK_TYPE_UINT32	32-bit unsigned integer (uint32_t / unsigned int).
CSILK_TYPE_INT64	64-bit signed integer (int64_t / long long).
CSILK_TYPE_UINT64	64-bit unsigned integer (uint64_t / unsigned long long).
CSILK_TYPE_FLOAT	Single-precision IEEE 754 float.
CSILK_TYPE_DOUBLE	Double-precision IEEE 754 double.
CSILK_TYPE_BOOL	Boolean (C99 _Bool / bool).
CSILK_TYPE_STRING	String: supports both char[] fixed buffers and char* pointers.
CSILK_TYPE_STRUCT	Nested struct (by value or pointer). `nested_type_name` identifies the type.

Function Documentation

◆ csilk_json_marshal()

char * csilk_json_marshal	(	const char *	type_name,
		const void *	ptr
	)

Serialise a reflected struct to a JSON string.

Walks the field descriptors for type_name and produces a compact JSON string (no extra whitespace). String fields are properly escaped.

Parameters

type_name	Registered type name of the struct.
ptr	Pointer to the struct instance to serialise.

Returns: A heap-allocated NUL-terminated JSON string (caller must free with free()), or NULL on error.

Serialise a reflected struct to a JSON string.

◆ csilk_json_unmarshal()

int csilk_json_unmarshal	(	const char *	type_name,
		const char *	json_str,
		void *	ptr
	)

Deserialise a JSON string into a reflected struct.

Parses the JSON and populates the struct fields according to the registered field descriptors. Numeric type checking and range clamping are performed where possible.

Parameters

	type_name	Registered type name of the target struct.
	json_str	NUL-terminated JSON string to parse.
[out]	ptr	Pointer to the struct instance to populate (must already be allocated and zero-initialised).

Returns: 1 on success, 0 on parse error or type mismatch.

Deserialise a JSON string into a reflected struct.

◆ csilk_reflect_find()

const csilk_reflect_entry_t * csilk_reflect_find ( const char * name )

Look up a registered type by name.

Parameters

name	Type name string.

Returns: Pointer to the csilk_reflect_entry_t, or NULL if name has not been registered.

Look up a registered type by name.

Searches the global registry for a type matching name.

Parameters

name	Type name to find (case-sensitive).

Returns: Pointer to the type's reflection entry, or NULL if not found.

Note: Thread-safe. The returned pointer is valid for the lifetime of the registration.

◆ csilk_reflect_foreach()

void csilk_reflect_foreach	(	csilk_reflect_foreach_cb	cb,
		void *	user_data
	)

Iterate over all registered reflection types.

Calls cb for each type in the registration table. Safe to call at any point — types registered via CSILK_REGISTER_REFLECT are available via GCC constructor functions that run before main().

Parameters

cb	Callback invoked for each registered type (must not be NULL).
user_data	Opaque pointer forwarded to every `cb` invocation.

Iterate over all registered reflection types.

Collects type names into a temporary array while holding the registry lock, then releases the lock and invokes the callback for each name. This two-phase approach avoids deadlocks when the callback itself calls back into reflection APIs (e.g., csilk_reflect_find()).

Parameters

cb	Callback invoked once per registered type.
user_data	Opaque pointer passed through to the callback.

Note: Thread-safe. The callback receives a const pointer to the entry, but this pointer should not be stored beyond the callback invocation.

◆ csilk_reflect_init()

void csilk_reflect_init ( void )

Initialise the reflection subsystem.

Sets up internal data structures (mutexes for thread-safe registration). Safe to call multiple times — subsequent calls are no-ops.

Initialise the reflection subsystem.

Creates the global registry mutex. Idempotent — safe to call multiple times. Automatically called by csilk_server_new() and other entry points.

Note: The reflection registry is a global array of up to MAX_REG_STRUCTS (256) entries protected by a mutex. All public reflection functions are thread-safe.

◆ csilk_reflect_register()

void csilk_reflect_register	(	const char *	name,
		const csilk_field_desc_t *	fields,
		size_t	count
	)

Manually register a struct type for reflection.

Types registered with this function are immediately available for marshal/unmarshal operations. The name must be unique.

Parameters

name	Type name string (must remain valid for the lifetime of the program — typically a string literal).
fields	NULL-terminated array of csilk_field_desc_t.
count	Number of valid entries in `fields` (excluding the NULL-sentinel terminator).

Manually register a struct type for reflection.

Adds a type name and its field descriptors to the global registry. Once registered, the type can be serialized/deserialized to/from JSON via csilk_json_marshal() / csilk_json_unmarshal(). The CSILK_REGISTER_REFLECT() macro generates the field array and calls this function automatically.

Parameters

name	Type name string (e.g., "my_request_t"). Must remain valid for the lifetime of the registration.
fields	Array of csilk_field_desc_t describing each struct field.
count	Number of fields in the array.

Note: Thread-safe. If the registry is full (256 types), the registration is silently dropped. Types registered first take precedence.

Data Structures

Macros

Typedefs

Enumerations

Functions

Data Structure Documentation

◆ csilk_field_desc_s

◆ csilk_reflect_entry_t

Macro Definition Documentation

◆ csilk_marshal

◆ CSILK_META_EXPAND

◆ CSILK_REGISTER_REFLECT

◆ csilk_type_name

◆ csilk_unmarshal

◆ CSILK_USER_TYPE_MAP

Typedef Documentation

◆ csilk_reflect_foreach_cb

Enumeration Type Documentation

◆ csilk_field_type_t

Function Documentation

◆ csilk_json_marshal()

◆ csilk_json_unmarshal()

◆ csilk_reflect_find()

◆ csilk_reflect_foreach()

◆ csilk_reflect_init()

◆ csilk_reflect_register()
