workflow.h File Reference

AI Workflow engine for the csilk framework. More...

#include "csilk/app/app.h"
#include "csilk/csilk.h"

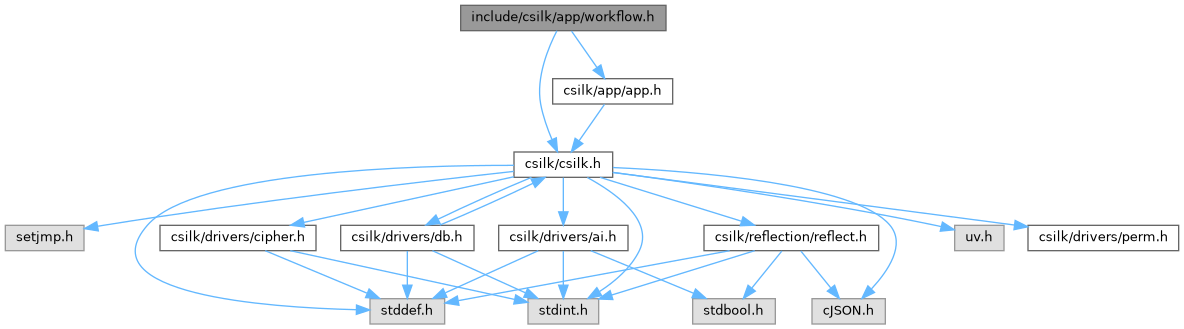

Include dependency graph for workflow.h:

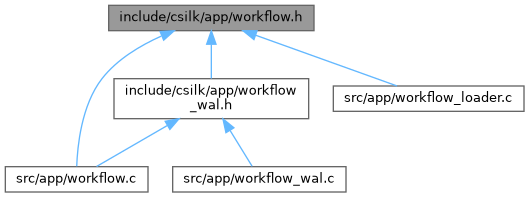

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	csilk_data_t
	Generic data container for passing messages between workflow nodes. More...
struct	csilk_wf_trace_node_t
	Trace record for a single node execution. More...
struct	csilk_wf_trace_t
	Complete execution trace of a workflow. More...
struct	csilk_ai_config_t
	Configuration for built-in AI nodes. More...

Typedefs
typedef const char *(*	csilk_wf_router_t) (csilk_data_t *input)
	Dynamic router function signature.
typedef csilk_data_t *(*	csilk_wf_handler_t) (csilk_wf_ctx_t *ctx, csilk_data_t *input, void *user_data)
	Function signature for a workflow node handler.
typedef char *(*	csilk_wf_tool_fn) (const char *args_json, void *user_data)
	Function signature for a workflow tool.

Enumerations
enum	csilk_wf_join_policy_t { CSILK_WF_JOIN_AND , CSILK_WF_JOIN_OR }
	Join policies for nodes with multiple incoming dependencies. More...

Functions
void	csilk_wf_serve_ui (csilk_app_t *app, const char *path)
	Register a default route to serve the workflow dashboard.
csilk_data_t *	csilk_wf_data_new (csilk_wf_ctx_t *ctx, const char *type, void *value)
	Allocate a new data container managed by the workflow arena.
char *	csilk_wf_strdup (csilk_wf_ctx_t *ctx, const char *s)
	Duplicate a string using the workflow arena.
void *	csilk_wf_alloc (csilk_wf_ctx_t *ctx, size_t size)
	Allocate memory from the workflow arena.
csilk_wf_t *	csilk_wf_new (const char *name)
	Create a new AI workflow instance.
void	csilk_wf_free (csilk_wf_t *wf)
	Deallocate a workflow and all its nodes.
csilk_wf_node_t *	csilk_wf_add (csilk_wf_t *wf, const char *id, csilk_wf_handler_t handler, void *user_data)
	Add a node to the workflow.
csilk_wf_node_t *	csilk_wf_add_ai (csilk_wf_t *wf, const char *id, const csilk_ai_config_t *config)
	Add a built-in AI node with template support.
void	csilk_wf_register_tool (csilk_wf_t *wf, const char *name, const char *description, const char *parameters_json, csilk_wf_tool_fn fn, void *user_data)
	Register a tool that AI nodes can call.
csilk_wf_node_t *	csilk_wf_get_node (csilk_wf_t *wf, const char *id)
	Get a node by ID.
void	csilk_wf_node_set_entry (csilk_wf_node_t *node, int is_entry)
	Mark a node as an entry point for the workflow.
void	csilk_wf_bind (csilk_wf_node_t *from, csilk_wf_node_t *to)
	Bind two nodes sequentially (default routing).
void	csilk_wf_on (csilk_wf_node_t *from, const char *condition, csilk_wf_node_t *to)
	Add a conditional route between nodes.
void	csilk_wf_on_loop (csilk_wf_node_t *from, const char *condition, csilk_wf_node_t *to)
	Add a loop-back / feedback route between nodes.
void	csilk_wf_on_error (csilk_wf_node_t *from, csilk_wf_node_t *target)
	Add an error fallback route.
void	csilk_wf_route (csilk_wf_node_t *node, csilk_wf_router_t router)
	Set a dynamic router for a node.
void	csilk_wf_node_set_join (csilk_wf_node_t *node, csilk_wf_join_policy_t policy)
	Set the join policy for a node.
void	csilk_wf_node_set_interactive (csilk_wf_node_t *node, int is_interactive)
	Mark a node as interactive (requires human signal to proceed).
void	csilk_wf_node_set_schema (csilk_wf_node_t *node, const char *schema)
	Set an expected JSON Schema for a node's output.
void	csilk_wf_signal_continue (csilk_wf_t *wf, const char *exec_id, csilk_data_t *input, void(*callback)(csilk_data_t *result))
	Signal a paused workflow to continue.
void	csilk_wf_node_set_timeout (csilk_wf_node_t *node, int timeout_ms)
	Set a timeout for a specific node.
void	csilk_wf_set_ttl (csilk_wf_t *wf, int ttl_sec)
	Set a global TTL for the workflow execution.
void	csilk_wf_node_set_retry (csilk_wf_node_t *node, int max_retries, int retry_delay_ms)
	Set automatic retry policy for a specific node.
void	csilk_wf_node_set_remote (csilk_wf_node_t *node, int is_remote)
	Mark a node for remote execution via MQ.
void	csilk_wf_enable_distributed (csilk_wf_t *wf, csilk_mq_t *mq)
	Enable distributed execution by bridging workflow with an MQ.
void	csilk_wf_set_persistence (csilk_wf_t *wf, const char *wal_dir)
	Enable WAL persistence for a workflow definition.
const char *	csilk_wf_run (csilk_wf_t *wf, csilk_data_t *input, void(*callback)(csilk_data_t *result))
	Run the workflow asynchronously.
void	csilk_wf_resume (csilk_wf_t *wf, const char *exec_id, void(*callback)(csilk_data_t *result))
	Resume an interrupted workflow execution from a WAL file.
void	csilk_wf_run_traced (csilk_wf_t *wf, csilk_data_t *input, void(*callback)(csilk_data_t *result, csilk_wf_trace_t *trace))
	Run workflow and generate a trace.
char *	csilk_wf_trace_to_json (const csilk_wf_trace_t *trace)
	Convert a trace object to a JSON string.
void	csilk_wf_trace_free (csilk_wf_trace_t *trace)
	Free a trace object.
void	csilk_wf_register_handler (const char *name, csilk_wf_handler_t handler)
	Register a global handler for use in declarative workflows.
csilk_wf_t *	csilk_wf_load_yaml (const char *path)
	Load a workflow definition from a YAML file.
csilk_wf_t *	csilk_wf_from_json (const char *json)
	Create a workflow from a JSON string.
char *	csilk_wf_to_mermaid (csilk_wf_t *wf)
	Export the workflow graph as a Mermaid string.
void	csilk_wf_register_monitor (csilk_wf_t *wf, csilk_ctx_t *c)
	Register a WebSocket connection to receive live workflow updates.
void	csilk_wf_set_budget (csilk_wf_t *wf, int max_tokens)
	Set a maximum token budget for the workflow.

Detailed Description

AI Workflow engine for the csilk framework.

Provides a graph-based orchestration engine for AI pipelines and agents. Supports sequential execution, parallel fan-out (via multi-input join policies), conditional routing, agentic loops with feedback edges, and built-in AI node handlers with LLM tool calling.

Graph Model

The workflow is a directed acyclic (or cyclic) graph of nodes. Each node is a handler function (or a built-in AI node) that receives data from its predecessors and emits data to its successors. Edges can be:

• Sequential (csilk_wf_bind): default routing, always fires.
• Conditional (csilk_wf_on): fires only when output matches a string.
• Loop-back (csilk_wf_on_loop): cycles but does NOT increment the target's incoming-edge counter (avoiding deadlock in AND-join logic).
• Error fallback (csilk_wf_on_error): fires on handler failure.
• Dynamic (csilk_wf_route): programmatic router callback decides the next node at runtime.

Execution

csilk_wf_run starts execution asynchronously. Entry nodes (nodes with 0 incoming edges or explicitly marked) fire immediately. Results propagate through the graph via the event loop. WAL persistence enables crash recovery via csilk_wf_resume.

Thread Safety

Workflow definitions are read-only during execution (all mutation must happen before csilk_wf_run). The runtime is single-threaded on the libuv event loop.

Copyright

MIT License

---

Data Structure Documentation

csilk_wf_trace_node_t

struct csilk_wf_trace_node_t

Trace record for a single node execution.

Data Fields
int	completion_tokens
uint64_t	end_time	Microseconds
char *	error	Error message if failed
char *	input_dump	String representation of input
char *	model	AI model used (if applicable)
char *	node_id
char *	output_dump	String representation of output
int	prompt_tokens
uint64_t	start_time	Microseconds (uv_hrtime)

csilk_wf_trace_t

struct csilk_wf_trace_t

Complete execution trace of a workflow.

Collaboration diagram for csilk_wf_trace_t:

Data Fields
uint64_t	end_time
char *	exec_id	Unique execution ID
size_t	node_count
csilk_wf_trace_node_t **	nodes
uint64_t	start_time

csilk_ai_config_t

struct csilk_ai_config_t

Configuration for built-in AI nodes.

Data Fields
int	max_history_messages	Max messages to keep in history (0 = unlimited).
int	max_tokens
const char *	model	AI model identifier.
const char *	prompt	User prompt (supports {{node.value}} templates).
int	stream	Enable token streaming to monitors.
const char *	system_msg	Optional system prompt.
double	temperature

Typedef Documentation

csilk_wf_handler_t

typedef csilk_data_t *(* csilk_wf_handler_t) (csilk_wf_ctx_t *ctx, csilk_data_t *input, void *user_data)

Function signature for a workflow node handler.

Parameters

ctx	Execution context (can be used for arena allocation).
input	Input data from previous node(s).
user_data	Opaque pointer passed during node creation.

csilk_wf_router_t

typedef const char *(* csilk_wf_router_t) (csilk_data_t *input)

Dynamic router function signature.

Parameters

input

Data from the node that just finished.

Returns

ID of the next node to trigger, or NULL for default routing.

csilk_wf_tool_fn

typedef char *(* csilk_wf_tool_fn) (const char *args_json, void *user_data)

Function signature for a workflow tool.

Parameters

args_json	JSON string of arguments provided by the LLM.
user_data	Opaque pointer passed during registration.

Returns

JSON string or text result (caller will free).

Enumeration Type Documentation

csilk_wf_join_policy_t

enum csilk_wf_join_policy_t

Join policies for nodes with multiple incoming dependencies.

Enumerator
CSILK_WF_JOIN_AND	Default: Trigger only when ALL inputs arrive.
CSILK_WF_JOIN_OR	Trigger when ANY input arrives.

Function Documentation

csilk_wf_add()

csilk_wf_node_t * csilk_wf_add	(	csilk_wf_t *	wf,
		const char *	id,
		csilk_wf_handler_t	handler,
		void *	user_data
	)

Add a node to the workflow.

Parameters

wf	Workflow handle.
id	Unique ID for the node.
handler	Function to execute.
user_data	Opaque pointer passed to the handler.

Returns

Handle to the created node, or NULL on failure.

csilk_wf_add_ai()

csilk_wf_node_t * csilk_wf_add_ai	(	csilk_wf_t *	wf,
		const char *	id,
		const csilk_ai_config_t *	config
	)

Add a built-in AI node with template support.

Parameters

wf	Workflow handle.
id	Unique ID.
config	AI configuration (copied internally).

Returns

Node handle.

csilk_wf_alloc()

void * csilk_wf_alloc	(	csilk_wf_ctx_t *	ctx,
		size_t	size
	)

Allocate memory from the workflow arena.

Parameters

ctx	Execution context.
size	Number of bytes.

Returns

Pointer to allocated memory.

csilk_wf_bind()

void csilk_wf_bind	(	csilk_wf_node_t *	from,
		csilk_wf_node_t *	to
	)

Bind two nodes sequentially (default routing).

Parameters

from	Source node.
to	Destination node.

csilk_wf_data_new()

csilk_data_t * csilk_wf_data_new	(	csilk_wf_ctx_t *	ctx,
		const char *	type,
		void *	value
	)

Allocate a new data container managed by the workflow arena.

Parameters

ctx	Execution context.
type	Data type identifier (copied).
value	Pointer to the data.

Returns

New data container.

csilk_wf_enable_distributed()

void csilk_wf_enable_distributed	(	csilk_wf_t *	wf,
		csilk_mq_t *	mq
	)

Enable distributed execution by bridging workflow with an MQ.

Parameters

wf	Workflow handle.
mq	MQ handle for task distribution.

csilk_wf_free()

void csilk_wf_free

(

csilk_wf_t *

wf

)

Deallocate a workflow and all its nodes.

Parameters

wf	Workflow handle.

csilk_wf_from_json()

csilk_wf_t * csilk_wf_from_json

(

const char *

json_str

)

Create a workflow from a JSON string.

Create a workflow from a JSON string.

Parses the JSON into a three-pass construction: Pass 1: Create all nodes from the "steps" array. Each step has an "id", optional "type" ("ai" or "handler"), and optional "config" for AI nodes. AI nodes use csilk_wf_add_ai() with prompt/model config; handler nodes use csilk_wf_add() with a registered callback. Pass 2: Create connections from the "connections" array. Each connection links a source ("from") to a target ("to"), optionally with a "condition" for conditional edges or "loop: true" for loops. Pass 3: Set error targets from each step's "on_error" field.

Parameters

json_str

Null-terminated JSON string.

Returns

A new csilk_wf_t, or NULL on parse failure or empty workflow.

Note

The caller owns the returned workflow and must free it with csilk_wf_free(). Handler functions must be registered via csilk_wf_register_handler() before calling this function.

csilk_wf_get_node()

csilk_wf_node_t * csilk_wf_get_node	(	csilk_wf_t *	wf,
		const char *	id
	)

Get a node by ID.

Parameters

wf	Workflow handle.
id	Node ID.

Returns

Node handle or NULL if not found.

Get a node by ID.

Parameters

wf	The workflow instance.
id	Node identifier (set in csilk_wf_add()).

Returns

Node pointer, or NULL if not found.

Note

Linear search of the node array — O(n).

csilk_wf_load_yaml()

csilk_wf_t * csilk_wf_load_yaml

(

const char *

path

)

Load a workflow definition from a YAML file.

Parameters

path	Path to the .yaml or .yml file.

Returns

Workflow handle, or NULL on failure.

Load a workflow definition from a YAML file.

Parses the YAML into cJSON via parse_yaml_file(), then delegates to csilk_wf_from_json() for workflow construction. This two-step approach avoids duplicated parsing logic.

Parameters

path	Path to a .yaml or .yml file.

Returns

A new csilk_wf_t, or NULL if the file cannot be read or the YAML is invalid.

Note

The caller owns the returned workflow.

csilk_wf_new()

csilk_wf_t * csilk_wf_new

(

const char *

name

)

Create a new AI workflow instance.

Parameters

name	Descriptive name for the workflow.

Returns

New workflow handle, or NULL on failure.

csilk_wf_node_set_entry()

void csilk_wf_node_set_entry	(	csilk_wf_node_t *	node,
		int	is_entry
	)

Mark a node as an entry point for the workflow.

Parameters

node	Node handle.
is_entry	Non-zero to mark as entry, 0 to unmark.

Note

By default, nodes with 0 incoming edges are entries. Use this to explicitly start a node that is also part of a loop.

csilk_wf_node_set_interactive()

void csilk_wf_node_set_interactive	(	csilk_wf_node_t *	node,
		int	is_interactive
	)

Mark a node as interactive (requires human signal to proceed).

Parameters

node	Node handle.
is_interactive	Non-zero to enable interactive mode.

csilk_wf_node_set_join()

void csilk_wf_node_set_join	(	csilk_wf_node_t *	node,
		csilk_wf_join_policy_t	policy
	)

Set the join policy for a node.

Parameters

node	Node handle.
policy	AND (default) or OR.

csilk_wf_node_set_remote()

void csilk_wf_node_set_remote	(	csilk_wf_node_t *	node,
		int	is_remote
	)

Mark a node for remote execution via MQ.

Parameters

node	Node handle.
is_remote	Non-zero to offload to remote worker.

csilk_wf_node_set_retry()

void csilk_wf_node_set_retry	(	csilk_wf_node_t *	node,
		int	max_retries,
		int	retry_delay_ms
	)

Set automatic retry policy for a specific node.

Parameters

node	Node handle.
max_retries	Maximum number of retry attempts.
retry_delay_ms	Delay before each retry.

csilk_wf_node_set_schema()

void csilk_wf_node_set_schema	(	csilk_wf_node_t *	node,
		const char *	schema
	)

Set an expected JSON Schema for a node's output.

Parameters

node	Node handle.
schema	JSON Schema string (NULL to disable).

csilk_wf_node_set_timeout()

void csilk_wf_node_set_timeout	(	csilk_wf_node_t *	node,
		int	timeout_ms
	)

Set a timeout for a specific node.

Parameters

node	Node handle.
timeout_ms	Timeout in milliseconds (0 for no timeout).

csilk_wf_on()

void csilk_wf_on	(	csilk_wf_node_t *	from,
		const char *	condition,
		csilk_wf_node_t *	to
	)

Add a conditional route between nodes.

Parameters

from	Source node.
condition	Result string that triggers this route (e.g., "fail").
to	Destination node.

csilk_wf_on_error()

void csilk_wf_on_error	(	csilk_wf_node_t *	from,
		csilk_wf_node_t *	target
	)

Add an error fallback route.

Parameters

from	Source node.
target	Destination node triggered if the source handler fails.

csilk_wf_on_loop()

void csilk_wf_on_loop	(	csilk_wf_node_t *	from,
		const char *	condition,
		csilk_wf_node_t *	to
	)

Add a loop-back / feedback route between nodes.

Parameters

from	Source node.
condition	Result string that triggers this route.
to	Destination node (typically an earlier node).

Note

Unlike csilk_wf_on, this does NOT increment the 'to' node's incoming dependency count, preventing deadlocks in join logic.

csilk_wf_register_handler()

void csilk_wf_register_handler	(	const char *	name,
		csilk_wf_handler_t	handler
	)

Register a global handler for use in declarative workflows.

Parameters

name	Unique name (matches 'handler' key in YAML/JSON).
handler	Function pointer.

csilk_wf_register_monitor()

void csilk_wf_register_monitor	(	csilk_wf_t *	wf,
		csilk_ctx_t *	c
	)

Register a WebSocket connection to receive live workflow updates.

Parameters

wf	Workflow handle.
c	Request context (must be upgraded to WebSocket).

csilk_wf_register_tool()

void csilk_wf_register_tool	(	csilk_wf_t *	wf,
		const char *	name,
		const char *	description,
		const char *	parameters_json,
		csilk_wf_tool_fn	fn,
		void *	user_data
	)

Register a tool that AI nodes can call.

Parameters

wf	Workflow handle.
name	Function name exposed to the LLM.
description	Description of what the tool does.
parameters_json	JSON Schema string for the arguments.
fn	C function to execute.
user_data	Context for the function.

csilk_wf_resume()

void csilk_wf_resume	(	csilk_wf_t *	wf,
		const char *	exec_id,
		void(*)(csilk_data_t *result)	callback
	)

Resume an interrupted workflow execution from a WAL file.

Parameters

wf	Workflow definition.
exec_id	The execution ID to resume.
callback	Callback for when the resumed workflow finishes.

csilk_wf_route()

void csilk_wf_route	(	csilk_wf_node_t *	node,
		csilk_wf_router_t	router
	)

Set a dynamic router for a node.

Parameters

node	Node handle.
router	Function that determines the next node based on output.

csilk_wf_run()

const char * csilk_wf_run	(	csilk_wf_t *	wf,
		csilk_data_t *	input,
		void(*)(csilk_data_t *result)	callback
	)

Run the workflow asynchronously.

Parameters

wf	Workflow handle.
input	Initial input data.
callback	Callback invoked when the workflow completes or exits.

Returns

Unique Execution ID (string). Caller must not free.

csilk_wf_run_traced()

void csilk_wf_run_traced	(	csilk_wf_t *	wf,
		csilk_data_t *	input,
		void(*)(csilk_data_t *result, csilk_wf_trace_t *trace)	callback
	)

Run workflow and generate a trace.

Parameters

wf	Workflow handle.
input	Initial input.
callback	Callback receiving final result and the full trace.

csilk_wf_serve_ui()

void csilk_wf_serve_ui	(	csilk_app_t *	app,
		const char *	path
	)

Register a default route to serve the workflow dashboard.

Parameters

app	Application handle.
path	URL path (e.g., "/admin/workflow").

csilk_wf_set_budget()

void csilk_wf_set_budget	(	csilk_wf_t *	wf,
		int	max_tokens
	)

Set a maximum token budget for the workflow.

Parameters

wf	Workflow handle.
max_tokens	Maximum total tokens (prompt + completion) allowed.

csilk_wf_set_persistence()

void csilk_wf_set_persistence	(	csilk_wf_t *	wf,
		const char *	wal_dir
	)

Enable WAL persistence for a workflow definition.

Parameters

wf	Workflow handle.
wal_dir	Directory to store execution logs.

csilk_wf_set_ttl()

void csilk_wf_set_ttl	(	csilk_wf_t *	wf,
		int	ttl_sec
	)

Set a global TTL for the workflow execution.

Parameters

wf	Workflow handle.
ttl_sec	TTL in seconds (0 for no limit).

csilk_wf_signal_continue()

void csilk_wf_signal_continue	(	csilk_wf_t *	wf,
		const char *	exec_id,
		csilk_data_t *	input,
		void(*)(csilk_data_t *result)	callback
	)

Signal a paused workflow to continue.

Parameters

wf	Workflow definition.
exec_id	Execution ID of the paused workflow.
input	Optional replacement input (e.g., human-edited prompt).
callback	Callback for when the resumed workflow finishes.

csilk_wf_strdup()

char * csilk_wf_strdup	(	csilk_wf_ctx_t *	ctx,
		const char *	s
	)

Duplicate a string using the workflow arena.

Parameters

ctx	Execution context.
s	Source string.

Returns

Copied string.

csilk_wf_to_mermaid()

char * csilk_wf_to_mermaid

(

csilk_wf_t *

wf

)

Export the workflow graph as a Mermaid string.

Parameters

wf	Workflow handle.

Returns

Heap-allocated Mermaid code (caller must free).

csilk_wf_trace_free()

void csilk_wf_trace_free

(

csilk_wf_trace_t *

trace

)

Free a trace object.

csilk_wf_trace_to_json()

char * csilk_wf_trace_to_json

(

const csilk_wf_trace_t *

trace

)

Convert a trace object to a JSON string.

Returns

JSON string (caller must free).
