ws_room.c File Reference

WebSocket room management and broadcast based on MQ. More...

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <uv.h>
#include "csilk/core/internal.h"
#include "csilk/csilk.h"

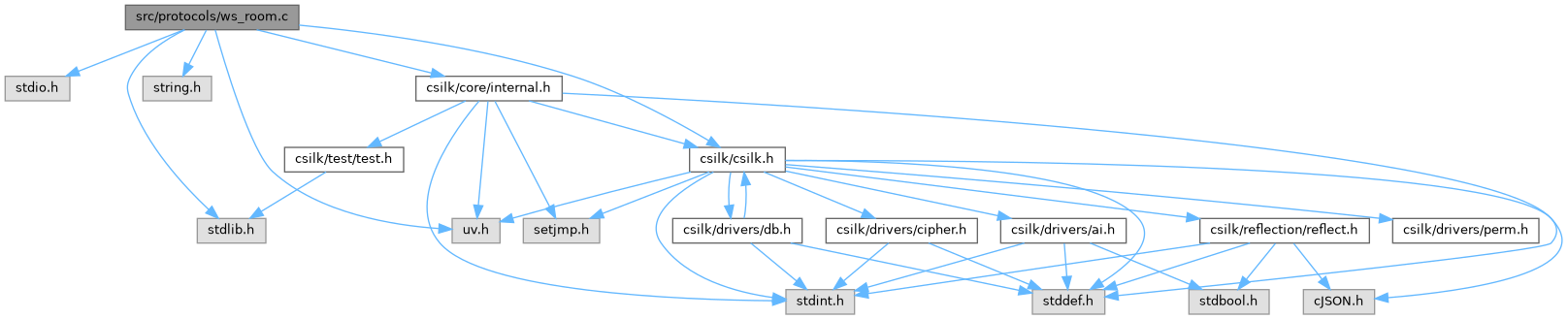

Include dependency graph for ws_room.c:

Data Structures
struct	ws_room_t
struct	ws_room_manager_t

Functions
static void	ws_room_manager_init ()
static ws_room_t *	find_room (const char *name)
static void	on_room_message (csilk_mq_ctx_t *ctx)
void	csilk_ws_join_room (csilk_ctx_t *c, const char *room_name)
	Join a WebSocket client to a room.
void	csilk_ws_leave_room (csilk_ctx_t *c, const char *room_name)
	Remove a WebSocket client from a room.
void	csilk_ws_broadcast_room (csilk_ctx_t *c, const char *room_name, const char *message)
	Broadcast a message to all WebSockets in a room via MQ.

Variables
static ws_room_manager_t	g_room_manager
static int	g_room_manager_initialized = 0

Detailed Description

WebSocket room management and broadcast based on MQ.

Implements a high-concurrency room broadcasting system for WebSockets. It leverages the internal Message Queue (MQ) as the event bus.

Architecture:

• Each room is mapped to an MQ topic: "ws.room.<room_name>".
• A global Room Manager maintains a list of active clients per room.
• A single MQ subscriber per room handles broadcasting to all connected clients.

Copyright

MIT License

---

Data Structure Documentation

ws_room_t

struct ws_room_t

Data Fields
csilk_ctx_t **	clients
int	clients_capacity
int	clients_count
char *	room_name

ws_room_manager_t

struct ws_room_manager_t

Collaboration diagram for ws_room_manager_t:

Data Fields
uv_mutex_t	mutex
ws_room_t **	rooms
int	rooms_capacity
int	rooms_count

Function Documentation

csilk_ws_broadcast_room()

void csilk_ws_broadcast_room	(	csilk_ctx_t *	c,
		const char *	room_name,
		const char *	message
	)

Broadcast a message to all WebSockets in a room via MQ.

Parameters

c	Request context (used to access the server's MQ).
room_name	Room to broadcast to.
message	NUL-terminated message string.

csilk_ws_join_room()

void csilk_ws_join_room	(	csilk_ctx_t *	c,
		const char *	room_name
	)

Join a WebSocket client to a room.

Parameters

c	Request context (must be a WebSocket).
room_name	Name of the room to join.

csilk_ws_leave_room()

void csilk_ws_leave_room	(	csilk_ctx_t *	c,
		const char *	room_name
	)

Remove a WebSocket client from a room.

Parameters

c	Request context.
room_name	Name of the room to leave.

find_room()

static ws_room_t * find_room ( const char *  name )

static

on_room_message()

static void on_room_message ( csilk_mq_ctx_t *  ctx )

static

ws_room_manager_init()

static void ws_room_manager_init ( )

static

Variable Documentation

g_room_manager

ws_room_manager_t g_room_manager

static

g_room_manager_initialized

int g_room_manager_initialized = 0

static
