Internal layout of csilk_ctx_s — the central per-request data structure. More...

#include <setjmp.h>
#include <uv.h>
#include "csilk/csilk.h"

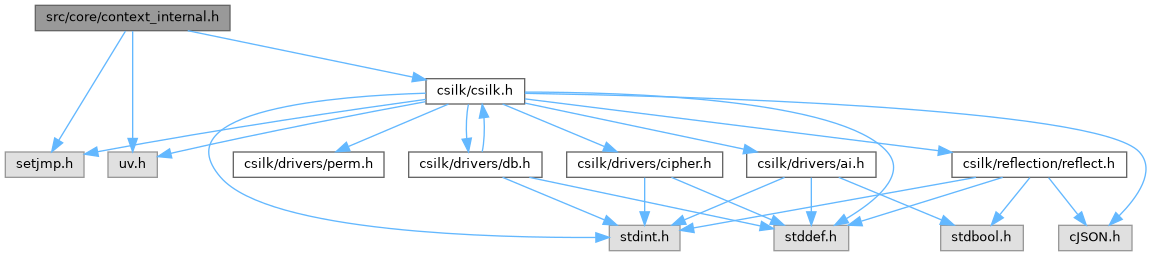

Include dependency graph for context_internal.h:

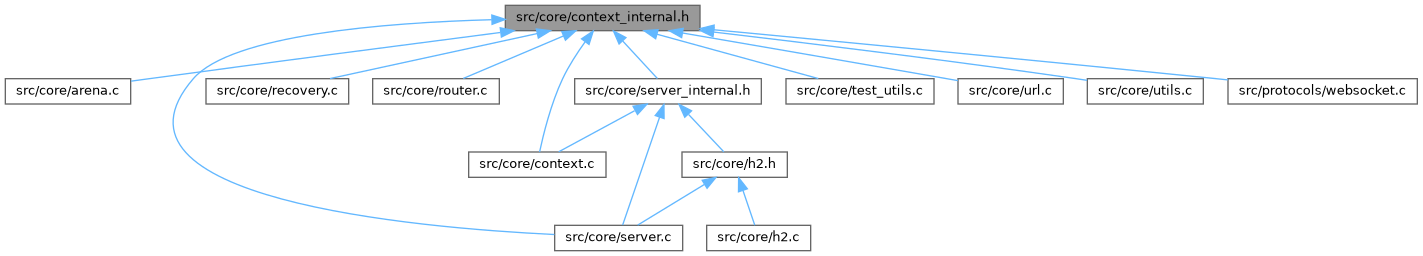

This graph shows which files directly or indirectly include this file:

Data Structures
struct	csilk_method_handler_t
	Method-specific handler mapping with OpenAPI metadata and permission info. More...

struct	csilk_storage_item_t
	A single key-value item in the context's custom storage linked list. More...

struct	csilk_ctx_t
	Main Request Context — holds all state for the current HTTP request/response cycle. More...

Functions
void	_csilk_ctx_init (csilk_ctx_t c, struct csilk_server_s s, void *client)
	Internal context initialiser.

Detailed Description

Internal layout of csilk_ctx_s — the central per-request data structure.

This header defines the actual memory layout of the request context struct. It is included ONLY by internal framework code (src/core/). External handlers receive an opaque csilk_ctx_t* and interact through the public API in csilk.h.

The context is the single most important data structure in csilk. It is created per-connection, reused across keep-alive requests via csilk_ctx_cleanup(), and carries:

Parsed HTTP request data (method, path, headers, body, query)
HTTP response data (status, headers, body)
URL path parameters captured during routing
Handler chain state (index, abort flag)
Error recovery (setjmp/longjmp buffer for middleware recovery)
Arena allocator for request-scoped memory
WebSocket/SSE mode flags and callbacks
Pluggable driver pointers (storage, crypto, cipher)
Zero-copy file serving state (sendfile fd/offset/size)
Per-request UUID for tracing

Copyright: MIT License

Data Structure Documentation

◆ csilk_method_handler_s

struct csilk_method_handler_s

Method-specific handler mapping with OpenAPI metadata and permission info.

Each entry in this linked list represents one HTTP method + handler chain registered at a specific route path. In addition to the handler function array, it carries optional metadata used by:

OpenAPI spec generation (input_type, output_type, summary, description)
Permission/ACL checks (perm_required, perm_resource)

Collaboration diagram for csilk_method_handler_t:

[legend]

Data Fields
const char *	description	Detailed description of the operation.
csilk_handler_t *	handlers	NULL-terminated array of handler function pointers for this method.
const char *	input_type	Registered type name for request body binding (optional, used by csilk_bind_reflect()).
char *	method	HTTP method string (e.g., "GET", "POST").
struct csilk_method_handler_s *	next	Next method handler in this node's linked list.
const char *	output_type	Registered type name for response generation (optional, used by csilk_json_reflect()).
char *	path	Metadata for OpenAPI spec generation URL path pattern (e.g., "/users/:id").
const char *	perm_required	Permission metadata for interface-level access control Permission required for this route (e.g., "read", "write"), or NULL if no check.
const char *	perm_resource	Resource pattern for permission check (e.g., "users:*"), or NULL.
const char *	summary	Short summary of the operation.

◆ csilk_storage_item_t

struct csilk_storage_item_t

A single key-value item in the context's custom storage linked list.

Items are allocated from the request arena and form a singly-linked list accessible via csilk_set()/csilk_get(). When a storage driver is set on the context, it takes precedence over this simple linked list.

Data Fields
char *	key	Item key name (arena-allocated).
struct csilk_storage_item_s *	next	Next item in the linked list (NULL if tail).
void *	value	Opaque pointer to user data (not copied, not freed).

Function Documentation

◆ _csilk_ctx_init()

void _csilk_ctx_init	(	csilk_ctx_t *	c,
		struct csilk_server_s *	s,
		void *	client
	)

Internal context initialiser.

Sets up default values for all fields. Should be called for both static (embedded in client) and dynamic (H2 stream) contexts.

Parameters

c	The context to initialize.
s	The owning server instance.
client	The underlying connection object (csilk_client_t*).
