server_internal.h File Reference

Internal layout of csilk_server_s and csilk_client_s. More...

#include <openssl/ssl.h>
#include <stdatomic.h>
#include <uv.h>
#include <llhttp.h>
#include <nghttp2/nghttp2.h>
#include "csilk/csilk.h"
#include "context_internal.h"

Include dependency graph for server_internal.h:

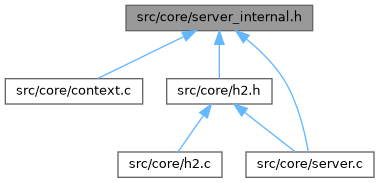

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	csilk_hook_node_t
	Hook handler node in a linked list. More...
struct	csilk_server_t
	Main Server structure — represents the core HTTP server instance. More...
struct	csilk_client_t
	Client connection structure — represents a single TCP connection. More...

Macros
#define	CSILK_DEFAULT_IDLE_TIMEOUT   5000
	Default idle timeout in milliseconds.
#define	CSILK_DEFAULT_MAX_BODY_SIZE   (1024UL * 1024UL)
	Default maximum request body size in bytes.
#define	CSILK_DEFAULT_MAX_HEADER_SIZE   (64UL * 1024UL)
	Default maximum request header size in bytes.
#define	CSILK_DEFAULT_LISTEN_BACKLOG   128
	Default TCP listen backlog.
#define	CSILK_DEFAULT_ARENA_SIZE   4096
	Default request arena chunk size.

Enumerations
enum	csilk_protocol_t { CSILK_PROTO_UNKNOWN , CSILK_PROTO_HTTP1 , CSILK_PROTO_HTTP2 }
	Protocol type for a client connection. More...

Functions
void	csilk_client_write (csilk_client_t *client, const uint8_t *data, size_t length)
	Write data to the client's TCP socket, handling TLS encryption if necessary.

Detailed Description

Internal layout of csilk_server_s and csilk_client_s.

This header defines the memory layout of the server and client structures. It is included by src/core/server.c and other internal framework code that needs access to the server's internal state (e.g., MQ, loop, hooks).

Copyright

MIT License

---

Data Structure Documentation

csilk_hook_node_t

struct csilk_hook_node_t

Hook handler node in a linked list.

Data Fields
void *	handler
struct csilk_hook_node_s *	next

csilk_server_s

struct csilk_server_s

Main Server structure — represents the core HTTP server instance.

Main Server structure.

Manages the libuv event loop, HTTP listener, configuration, global middleware chain, hook registrations, and client connection pooling. Thread-safe for multi-threaded operation via atomic counters and mutexes.

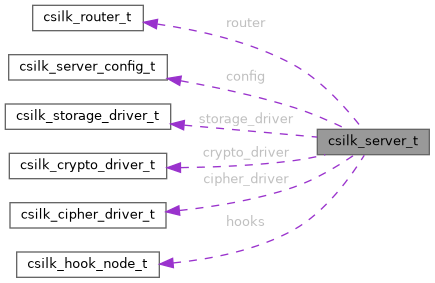

Collaboration diagram for csilk_server_t:

Data Fields
csilk_client_t *	active_clients	Head of active connections list.
atomic_int	active_connections	Current connection count (atomic).
uv_async_t	async_handle	Async handle for cross-thread wakeup.
csilk_cipher_driver_t *	cipher_driver	Cipher algorithm driver.
csilk_client_t *	client_pool[32]	Connection object free list.
int	client_pool_count	Number of free clients in pool.
uv_mutex_t	clients_mutex	Mutex for active clients list.
csilk_server_config_t	config	Server configuration.
csilk_crypto_driver_t *	crypto_driver	Crypto algorithm driver.
csilk_hook_node_t *	hooks[CSILK_HOOK_COUNT]	Registered hooks.
uv_loop_t *	loop	libuv event loop.
int	max_connections	Max concurrent connections (0=unlimited).
int	middleware_count	Number of global middlewares.
csilk_handler_t	middlewares[32]	Global middlewares.
csilk_mq_t *	mq	Message Queue instance.
csilk_handler_t	not_found_handler	Custom 404 handler (NULL = default).
uv_mutex_t	pool_mutex	Mutex for connection pool access.
csilk_router_t *	router	Associated router instance.
uv_tcp_t	server_handle	TCP server handle.
llhttp_settings_t	settings	HTTP parser callback settings.
uv_signal_t	sig_handle	SIGINT signal handler.
char *	spa_doc_root	SPA fallback doc root (NULL = disabled).
SSL_CTX *	ssl_ctx	OpenSSL context.
csilk_storage_driver_t *	storage_driver	Context storage driver.
int	worker_count	Number of worker threads created.
uv_async_t *	worker_stop_async	Per-worker async handles for graceful stop.
int	worker_stop_count	Number of worker_stop_async entries.
uv_thread_t *	worker_tids	Worker thread IDs (NULL if single-thread).

csilk_client_s

struct csilk_client_s

Client connection structure — represents a single TCP connection.

Forward declaration for client connection structure.

Holds the libuv stream handle, HTTP parser state, timers for keep-alive and timeouts, TLS context (if HTTPS), and the request/response context. Clients are pooled and reused for performance.

Collaboration diagram for csilk_client_t:

Data Fields
int	close_pending	Pending close refs before freeing client.
csilk_ctx_t	ctx	Request context for this connection (HTTP/1.1 only for now).
char *	current_header_field	Temporary header field name.
char *	current_header_value	Temporary header field value.
char *	current_url	Current URL being parsed.
size_t	current_url_capacity	Allocated size of current_url.
nghttp2_session *	h2_session	HTTP/2 session state (if HTTP/2).
csilk_ctx_t *	h2_streams	Linked list of active HTTP/2 stream contexts.
uv_tcp_t	handle	libuv TCP stream handle.
size_t	header_count	Number of headers parsed so far.
size_t	header_field_capacity	Allocated size of current_header_field.
size_t	header_value_capacity	Allocated size of current_header_value.
struct csilk_client_s *	next	Next client in active list.
llhttp_t	parser	HTTP request parser (if HTTP/1.1).
struct csilk_client_s *	prev	Previous client in active list.
csilk_protocol_t	protocol	Protocol negotiated for this connection.
BIO *	read_bio	BIO for reading encrypted data.
uv_timer_t	read_timer	Read timeout timer.
uv_timer_t	request_timer	Request timeout timer.
csilk_server_t *	server	Owning server instance.
SSL *	ssl	OpenSSL session object.
uv_timer_t	timer	Connection idle (keep-alive) timer.
size_t	total_header_size	Total size of headers parsed so far.
BIO *	write_bio	BIO for writing encrypted data.
uv_timer_t	write_timer	Write timeout timer.

Macro Definition Documentation

CSILK_DEFAULT_ARENA_SIZE

#define CSILK_DEFAULT_ARENA_SIZE   4096

Default request arena chunk size.

CSILK_DEFAULT_IDLE_TIMEOUT

#define CSILK_DEFAULT_IDLE_TIMEOUT   5000

Default idle timeout in milliseconds.

CSILK_DEFAULT_LISTEN_BACKLOG

#define CSILK_DEFAULT_LISTEN_BACKLOG   128

Default TCP listen backlog.

CSILK_DEFAULT_MAX_BODY_SIZE

#define CSILK_DEFAULT_MAX_BODY_SIZE   (1024UL * 1024UL)

Default maximum request body size in bytes.

CSILK_DEFAULT_MAX_HEADER_SIZE

#define CSILK_DEFAULT_MAX_HEADER_SIZE   (64UL * 1024UL)

Default maximum request header size in bytes.

Enumeration Type Documentation

csilk_protocol_t

enum csilk_protocol_t

Protocol type for a client connection.

Enumerator
CSILK_PROTO_UNKNOWN
CSILK_PROTO_HTTP1
CSILK_PROTO_HTTP2

Function Documentation

csilk_client_write()

void csilk_client_write	(	csilk_client_t *	client,
		const uint8_t *	data,
		size_t	len
	)

Write data to the client's TCP socket, handling TLS encryption if necessary.

Parameters

client	The client connection.
data	The data to write.
length	The length of the data.

Write data to the client's TCP socket, handling TLS encryption if necessary.

If TLS is active, writes through the SSL session and flushes the write BIO. Otherwise, allocates a write request, copies the data, and queues the write via libuv. The data buffer is freed by the write completion callback.

Parameters

c	The request context.
data	Data buffer to send.
len	Length of data in bytes.

Note

This is an internal function used by the framework to send HTTP responses, chunked frames, and WebSocket frames.
