OpenAPI 3.0 specification generator and Swagger UI serving. More...

#include <ctype.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <strings.h>
#include "csilk/csilk.h"
#include "csilk/reflection/reflect.h"

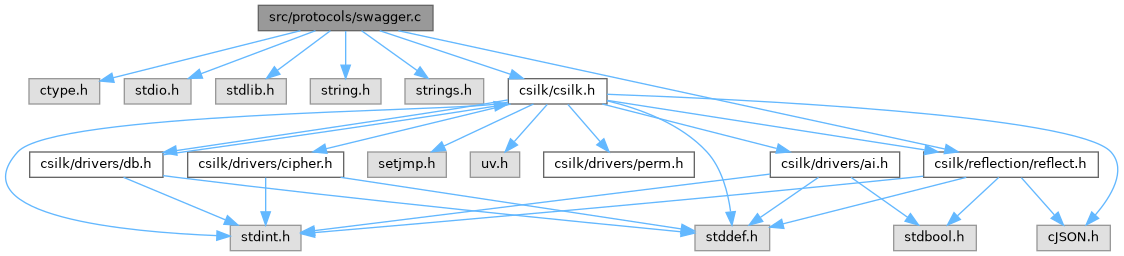

Include dependency graph for swagger.c:

Functions
static void	path_to_openapi (const char path, char out, size_t out_size)
	Convert a csilk path pattern to OpenAPI 3.0 path format.

static const char *	field_type_to_openapi_type (csilk_field_type_t type)
	Map a csilk reflection field type to an OpenAPI 3.0 schema type string.

static cJSON *	generate_schema_for_type (const char *type_name)
	Generate an OpenAPI 3.0 schema object for a registered reflection type.

static void	add_schema (cJSON schemas, const char type_name)
	Internal: add a schema definition to the components/schemas map.

static void	auto_register_schema (const char name, const csilk_reflect_entry_t entry, void *user_data)
	Internal: callback for csilk_reflect_foreach() to auto-register a schema.

cJSON *	csilk_generate_openapi_json (csilk_router_t router, const char title, const char version, const char description)
	Generate a complete OpenAPI 3.0 specification document from the router and reflection registry.

void	csilk_serve_openapi (csilk_ctx_t c, csilk_router_t r, const char title, const char version, const char *description)
	Serve the generated OpenAPI 3.0 spec as a JSON response.

void	csilk_serve_swagger_ui (csilk_ctx_t *c)
	Serve the embedded Swagger UI page. The page loads /openapi.json at runtime to render interactive documentation.

Variables
static const char	swagger_ui_html []
	Compiled-in Swagger UI HTML page.

Detailed Description

OpenAPI 3.0 specification generator and Swagger UI serving.

Architecture: The OpenAPI document builder (csilk_generate_openapi_json) works in three phases: (1) traversing the route table to populate the "paths" section with endpoint descriptions, parameters, request bodies, and responses; (2) calling add_schema() on each unique input/output type to populate "components/schemas" with JSON Schema objects derived from the reflection registry; (3) scanning all registered reflection types via csilk_reflect_foreach() to ensure even orphan types appear in the spec.

Path patterns from the router (":param", "*glob") are converted to OpenAPI 3.0 syntax ("{param}", "{glob+}") by path_to_openapi(). Schema generation uses generate_schema_for_type() to walk each reflection type's field descriptors and emit "type" + "properties" maps, with nested structs emitting "$ref" references. Circular type references are handled by add_schema()'s cycle detection (checks type presence before recursing).

The Swagger UI page is compiled into the binary as a static string and served at a designated route by csilk_serve_swagger_ui(). It loads the /openapi.json endpoint at runtime.

Copyright: MIT License

Function Documentation

◆ add_schema()

static void add_schema	(	cJSON *	schemas,
		const char *	type_name
	)

static

Internal: add a schema definition to the components/schemas map.

If the schema for type_name already exists in schemas, this is a no-op (prevents infinite recursion on circular type references). Otherwise generates the schema, adds it, and recursively registers schemas for any nested struct fields.

Parameters

schemas	The "schemas" cJSON object under components.
type_name	Type name to generate and add.

◆ auto_register_schema()

static void auto_register_schema	(	const char *	name,
		const csilk_reflect_entry_t *	entry,
		void *	user_data
	)

static

Internal: callback for csilk_reflect_foreach() to auto-register a schema.

Calls add_schema() for every type found during iteration. Used to ensure all registered types appear in components/schemas even if not explicitly linked to any route.

Parameters

name	Type name.
entry	Reflection entry (unused).
user_data	Pointer to the schemas cJSON object.

◆ csilk_generate_openapi_json()

cJSON * csilk_generate_openapi_json	(	csilk_router_t *	router,
		const char *	title,
		const char *	version,
		const char *	description
	)

Generate a complete OpenAPI 3.0 specification document from the router and reflection registry.

Generate an OpenAPI 3.0 specification JSON from the router.

Builds the full OpenAPI JSON structure including:

openapi version field ("3.0.3")
info section (title, version, description)
paths section (one entry per route, with parameters, requestBody, and responses)
components/schemas section (auto-generated from all registered reflection types)

Path parameters are extracted from the route patterns and converted to OpenAPI format. Request/response schemas are generated from input_type and output_type metadata using the reflection engine.

Parameters

router	The router instance containing registered routes.
title	API title for the info section (pass NULL for default).
version	API version string (pass NULL for default "1.0.0").
description	API description (may be NULL).

Returns: A cJSON object representing the full OpenAPI document. Caller must free with cJSON_Delete(). Returns NULL if router is NULL or allocation fails.

◆ csilk_serve_openapi()

void csilk_serve_openapi	(	csilk_ctx_t *	c,
		csilk_router_t *	r,
		const char *	title,
		const char *	version,
		const char *	description
	)

Serve the generated OpenAPI 3.0 spec as a JSON response.

Serve the OpenAPI JSON specification as the response.

Intended to be called from within a route handler. Generates the OpenAPI document via csilk_generate_openapi_json() and sends it as a JSON response.

Parameters

c	The request context.
r	The router instance.
title	API title.
version	API version.
description	API description.

Note: The response is sent synchronously via csilk_json(). On failure, a 500 error response is sent.

◆ csilk_serve_swagger_ui()

void csilk_serve_swagger_ui ( csilk_ctx_t * c )

Serve the embedded Swagger UI page. The page loads /openapi.json at runtime to render interactive documentation.

Serve the embedded Swagger UI page.

◆ field_type_to_openapi_type()

static const char * field_type_to_openapi_type ( csilk_field_type_t type )

static

Map a csilk reflection field type to an OpenAPI 3.0 schema type string.

Integer types map to "integer", float/double to "number", bool to "boolean", string to "string", and struct to "object". Any unrecognized type defaults to "string".

Parameters

type	The csilk_field_type_t enum value.

Returns: A static string literal suitable for OpenAPI's "type" field.

◆ generate_schema_for_type()

static cJSON * generate_schema_for_type ( const char * type_name )

static

Generate an OpenAPI 3.0 schema object for a registered reflection type.

Iterates the type's field descriptors and produces a schema with "type": "object" and a "properties" map. Each field is mapped to its OpenAPI type, with nested structs rendered as $ref pointers to #/components/schemas/<type_name>. Array fields use an "array" type wrapper with "items".

Parameters

type_name Registered reflection type name.

Returns: A cJSON object representing the OpenAPI schema, or NULL if the type is not registered or allocation fails.

Note: The caller must free the returned cJSON with cJSON_Delete().

◆ path_to_openapi()

static void path_to_openapi	(	const char *	path,
		char *	out,
		size_t	out_size
	)

static

Convert a csilk path pattern to OpenAPI 3.0 path format.

Transforms ":param" segments to "{param}" and "*wildcard" segments to "{wildcard+}" as required by the OpenAPI 3.0 specification.

Parameters

path	Input path pattern (e.g., "/users/:id/posts/star-path").
out	Output buffer for the OpenAPI-formatted path.
out_size	Size of the output buffer (including null terminator).

Note: The output is truncated to fit out_size if the converted path is too long. The caller should ensure out_size is large enough.

Variable Documentation

◆ swagger_ui_html

const char swagger_ui_html[]

static

Compiled-in Swagger UI HTML page.

This HTML string is embedded directly into the binary and served at a designated route by csilk_serve_swagger_ui(). It initializes the Swagger UI JavaScript bundle to render an interactive API reference.

Loading strategy:

CSS/JS assets are hosted at "/csilk-docs/" — these are static files from the official Swagger UI distribution bundled with the server (either as separate files or embedded via a build step).
The spec URL is "/openapi.json", served by csilk_serve_openapi(). This decouples UI from spec generation: the UI HTML is loaded once, and the spec is fetched on page load, always reflecting the latest routes and types without a server restart.
SwaggerUIBundle + SwaggerUIStandalonePreset provide the full "Try it out" feature, response preview, and schema exploration.
