Core cryptographic and encoding utilities. More...

#include <stdint.h>
#include <stdio.h>
#include <string.h>
#include "context_internal.h"
#include "csilk/core/internal.h"
#include "csilk/drivers/cipher.h"

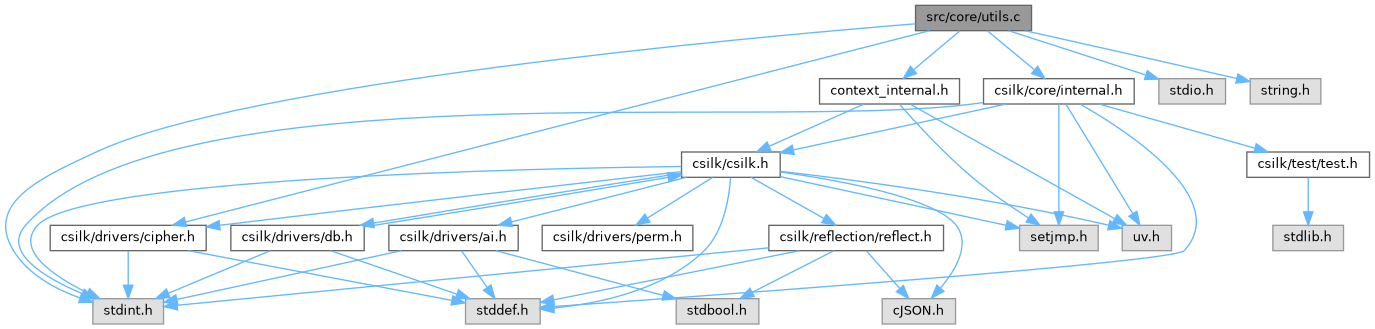

Include dependency graph for utils.c:

Macros
#define	rol(value, bits) (((value) << (bits)) \| ((value) >> (32 - (bits))))
	32-bit rotate-left operation (cyclic bit shift).

#define	ror(value, bits) (((value) >> (bits)) \| ((value) << (32 - (bits))))

#define	ch(x, y, z) (((x) & (y)) ^ (~(x) & (z)))

#define	maj(x, y, z) (((x) & (y)) ^ ((x) & (z)) ^ ((y) & (z)))

#define	sigma0(x) (ror(x, 2) ^ ror(x, 13) ^ ror(x, 22))

#define	sigma1(x) (ror(x, 6) ^ ror(x, 11) ^ ror(x, 25))

#define	gamma0(x) (ror(x, 7) ^ ror(x, 18) ^ ((x) >> 3))

#define	gamma1(x) (ror(x, 17) ^ ror(x, 19) ^ ((x) >> 10))

Functions
static void	sha1_transform (uint32_t state[5], const uint8_t buffer[64])
	Internal: process a single 64-byte block through the SHA-1 compression function.

void	csilk_sha1_init (csilk_sha1_ctx *context)
	Initialize a SHA-1 hashing context with the standard initial hash values.

void	csilk_sha1_update (csilk_sha1_ctx context, const uint8_t data, size_t len)
	Feed data into the SHA-1 hashing context for incremental hashing.

void	csilk_sha1_final (csilk_sha1_ctx *context, uint8_t digest[20])
	Finalize the SHA-1 hash and produce the 20-byte digest.

static void	sha256_transform (uint32_t state[8], const uint8_t data[64])
	Process a single 64-byte block through the SHA-256 compression function (FIPS 180-4 §6.2.2).

void	csilk_sha256_init (csilk_sha256_ctx *context)
	Initialize a SHA-256 hashing context with the standard initial hash values.

void	csilk_sha256_update (csilk_sha256_ctx context, const uint8_t data, size_t len)
	Feed data into the SHA-256 hashing context for incremental hashing.

void	csilk_sha256_final (csilk_sha256_ctx *context, uint8_t digest[32])
	Finalize the SHA-256 hash and produce the 32-byte digest.

void	csilk_hmac_sha256 (const uint8_t key, size_t key_len, const uint8_t data, size_t data_len, uint8_t out[32])
	Compute HMAC-SHA256 as defined in RFC 2104.

void	csilk_base64_encode (const uint8_t src, size_t len, char out)
	Encode raw bytes as a standard Base64 string per RFC 4648.

void	csilk_base64url_encode (const uint8_t src, size_t len, char out)
	Encode raw bytes as a Base64URL string per RFC 4648 §5 (URL-safe).

int	csilk_base64url_decode (const char src, uint8_t out)
	Decode a Base64URL-encoded string back to raw bytes.

void	csilk_generate_uuid (char *buf)
	Generate a random UUID version 4 string in the standard 8-4-4-4-12 format.

void	_csilk_hmac_sha256 (csilk_ctx_t c, const uint8_t key, size_t key_len, const uint8_t *data, size_t data_len, uint8_t out[32])
	Context-aware HMAC-SHA256 — delegates to the crypto driver if available.

void	_csilk_generate_uuid (csilk_ctx_t *c, char buf[37])
	Context-aware UUID generation — delegates to the crypto driver if available.

static csilk_cipher_driver_t *	resolve_cipher (csilk_ctx_t *c)

int	_csilk_symmetric_encrypt (csilk_ctx_t c, const uint8_t key, size_t key_len, const uint8_t plaintext, size_t plaintext_len, const uint8_t iv, size_t iv_len, uint8_t ciphertext, size_t ciphertext_len, uint8_t *tag, size_t tag_len)
	Internal: Symmetric encrypt using the context's cipher driver or the built-in OpenSSL AES-256-GCM implementation.

int	_csilk_symmetric_decrypt (csilk_ctx_t c, const uint8_t key, size_t key_len, const uint8_t ciphertext, size_t ciphertext_len, const uint8_t iv, size_t iv_len, const uint8_t tag, size_t tag_len, uint8_t plaintext, size_t *plaintext_len)
	Internal: Symmetric decrypt using the context's cipher driver or the built-in OpenSSL AES-256-GCM implementation.

int	_csilk_generate_keypair (csilk_ctx_t c, char public_key, size_t pub_len, char private_key, size_t *priv_len)
	Internal: Generate an RSA-2048 key pair using the context's cipher driver or the built-in OpenSSL implementation.

int	_csilk_asymmetric_encrypt (csilk_ctx_t c, const char public_key, size_t pub_len, const uint8_t plaintext, size_t plaintext_len, uint8_t ciphertext, size_t *ciphertext_len)
	Internal: Asymmetric encrypt using the context's cipher driver or the built-in OpenSSL RSA-OAEP implementation.

int	_csilk_asymmetric_decrypt (csilk_ctx_t c, const char private_key, size_t priv_len, const uint8_t ciphertext, size_t ciphertext_len, uint8_t plaintext, size_t *plaintext_len)
	Internal: Asymmetric decrypt using the context's cipher driver or the built-in OpenSSL RSA-OAEP implementation.

int	_csilk_sign (csilk_ctx_t c, const char private_key, size_t priv_len, const uint8_t data, size_t data_len, uint8_t signature, size_t *sig_len)
	Internal: Sign data using the context's cipher driver or the built-in OpenSSL RSA-PSS implementation.

int	_csilk_verify (csilk_ctx_t c, const char public_key, size_t pub_len, const uint8_t data, size_t data_len, const uint8_t signature, size_t sig_len)
	Internal: Verify a signature using the context's cipher driver or the built-in OpenSSL RSA-PSS implementation.

Variables
static const uint32_t	k256 []

static const char	b64_table [] = "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/"
	Standard Base64 alphabet per RFC 4648 §4.

csilk_cipher_driver_t	csilk_default_cipher_driver
	Default cipher driver vtable mapping all operations to the OpenSSL-backed implementations above.

Detailed Description

Core cryptographic and encoding utilities.

Implements low-level building blocks used throughout the csilk framework:

SHA-1 : WebSocket handshake (RFC 6455) — intentionally weak, do NOT use for security-critical purposes.
SHA-256 : HMAC, JWT signing, session integrity — full FIPS 180-4 impl.
HMAC-SHA256 : Keyed-hash message authentication (RFC 2104) for JWT, CSRF.
Base64 / Base64URL : Encoding for JWT, WebSocket key, cookie values.
UUID v4 : Per-request unique identifiers (RFC 4122, random variant).
WebSocket frame parsing: raw frame decode for the ws middleware.

All functions support the internal dispatch pattern: they can be called standalone (using built-in software implementations) or delegating through the context's crypto/cipher driver when one is set.

Copyright: MIT License

Macro Definition Documentation

◆ ch

#define ch	(	x,
		y,
		z
	)	(((x) & (y)) ^ (~(x) & (z)))

◆ gamma0

#define gamma0 ( x ) (ror(x, 7) ^ ror(x, 18) ^ ((x) >> 3))

◆ gamma1

#define gamma1 ( x ) (ror(x, 17) ^ ror(x, 19) ^ ((x) >> 10))

◆ maj

#define maj	(	x,
		y,
		z
	)	(((x) & (y)) ^ ((x) & (z)) ^ ((y) & (z)))

◆ rol

#define rol	(	value,
		bits
	)	(((value) << (bits)) \| ((value) >> (32 - (bits))))

32-bit rotate-left operation (cyclic bit shift).

◆ ror

#define ror	(	value,
		bits
	)	(((value) >> (bits)) \| ((value) << (32 - (bits))))

◆ sigma0

#define sigma0 ( x ) (ror(x, 2) ^ ror(x, 13) ^ ror(x, 22))

◆ sigma1

#define sigma1 ( x ) (ror(x, 6) ^ ror(x, 11) ^ ror(x, 25))

Function Documentation

◆ _csilk_asymmetric_decrypt()

int _csilk_asymmetric_decrypt	(	csilk_ctx_t *	c,
		const char *	private_key,
		size_t	priv_len,
		const uint8_t *	ciphertext,
		size_t	ciphertext_len,
		uint8_t *	plaintext,
		size_t *	plaintext_len
	)

Internal: Asymmetric decrypt using the context's cipher driver or the built-in OpenSSL RSA-OAEP implementation.

Parameters

	c	Request context (for driver lookup, may be NULL).
	private_key	PEM-encoded RSA private key.
	priv_len	Private key length.
	ciphertext	Data to decrypt (typically 256 bytes for RSA-2048).
	ciphertext_len	Ciphertext length.
[out]	plaintext	Output buffer.
[in,out]	plaintext_len	In: capacity, Out: actual length.

Returns: 0 on success, -1 on failure.

◆ _csilk_asymmetric_encrypt()

int _csilk_asymmetric_encrypt	(	csilk_ctx_t *	c,
		const char *	public_key,
		size_t	pub_len,
		const uint8_t *	plaintext,
		size_t	plaintext_len,
		uint8_t *	ciphertext,
		size_t *	ciphertext_len
	)

Internal: Asymmetric encrypt using the context's cipher driver or the built-in OpenSSL RSA-OAEP implementation.

Parameters

	c	Request context (for driver lookup, may be NULL).
	public_key	PEM-encoded RSA public key.
	pub_len	Public key length.
	plaintext	Data to encrypt (max ~190 bytes for RSA-2048).
	plaintext_len	Plaintext length.
[out]	ciphertext	256-byte output buffer.
[in,out]	ciphertext_len	In: capacity, Out: actual length.

Returns: 0 on success, -1 on failure.

◆ _csilk_generate_keypair()

int _csilk_generate_keypair	(	csilk_ctx_t *	c,
		char *	public_key,
		size_t *	pub_len,
		char *	private_key,
		size_t *	priv_len
	)

Internal: Generate an RSA-2048 key pair using the context's cipher driver or the built-in OpenSSL implementation.

Keys are output as PEM-encoded strings.

Parameters

	c	Request context (for driver lookup, may be NULL).
[out]	public_key	PEM public key buffer.
[in,out]	pub_len	In: capacity, Out: actual PEM length (incl. NUL).
[out]	private_key	PEM private key buffer.
[in,out]	priv_len	In: capacity, Out: actual PEM length (incl. NUL).

Returns: 0 on success, -1 on failure.

◆ _csilk_generate_uuid()

void _csilk_generate_uuid	(	csilk_ctx_t *	c,
		char	buf[37]
	)

Context-aware UUID generation — delegates to the crypto driver if available.

Internal: Generate a random UUID v4 string using the crypto driver (if set) or the built-in /dev/urandom-based implementation.

This is the late-bound UUID generator. If the context has a crypto driver with a cryptographically secure generate_uuid method (e.g., reading from a hardware RNG or via OpenSSL), that is used. Otherwise falls back to the built-in csilk_generate_uuid() which reads /dev/urandom.

The delegation pattern ensures callers always get the best available randomness source without explicit driver management.

Parameters

c	Request context (may be NULL — falls back to built-in).
buf	[out] 37-byte buffer for the UUID string.

◆ _csilk_hmac_sha256()

void _csilk_hmac_sha256	(	csilk_ctx_t *	c,
		const uint8_t *	key,
		size_t	key_len,
		const uint8_t *	data,
		size_t	data_len,
		uint8_t	out[32]
	)

Context-aware HMAC-SHA256 — delegates to the crypto driver if available.

Internal: Compute HMAC-SHA256 using the server's crypto driver (if set) or the built-in software implementation.

This is the "late-bound" version of csilk_hmac_sha256(). It checks whether the request context has a crypto driver installed (e.g., OpenSSL, mbedTLS, or a hardware security module). If so, the driver's accelerated HMAC is used. Otherwise, the built-in software implementation serves as the portable fallback.

This pattern allows the application to use pluggable crypto backends without changing caller code. The default built-in implementation is always available for environments without hardware crypto.

Parameters

c	Request context (may be NULL — falls back to built-in).
key	HMAC key.
key_len	Key length.
data	Input data.
data_len	Data length.
out	[out] 32-byte HMAC output buffer.

◆ _csilk_sign()

int _csilk_sign	(	csilk_ctx_t *	c,
		const char *	private_key,
		size_t	priv_len,
		const uint8_t *	data,
		size_t	data_len,
		uint8_t *	signature,
		size_t *	sig_len
	)

Internal: Sign data using the context's cipher driver or the built-in OpenSSL RSA-PSS implementation.

Parameters

	c	Request context (for driver lookup, may be NULL).
	private_key	PEM-encoded RSA private key.
	priv_len	Private key length.
	data	Data to sign.
	data_len	Data length.
[out]	signature	256-byte signature buffer.
[in,out]	sig_len	In: capacity, Out: actual signature length.

Returns: 0 on success, -1 on failure.

◆ _csilk_symmetric_decrypt()

int _csilk_symmetric_decrypt	(	csilk_ctx_t *	c,
		const uint8_t *	key,
		size_t	key_len,
		const uint8_t *	ciphertext,
		size_t	ciphertext_len,
		const uint8_t *	iv,
		size_t	iv_len,
		const uint8_t *	tag,
		size_t	tag_len,
		uint8_t *	plaintext,
		size_t *	plaintext_len
	)

Internal: Symmetric decrypt using the context's cipher driver or the built-in OpenSSL AES-256-GCM implementation.

Parameters

	c	Request context (for driver lookup, may be NULL).
	key	Decryption key (must be 32 bytes for AES-256).
	key_len	Key length.
	ciphertext	Data to decrypt.
	ciphertext_len	Ciphertext length.
	iv	12-byte initialisation vector (nonce).
	iv_len	IV length (must be 12 for GCM).
	tag	16-byte authentication tag.
	tag_len	Tag length (must be 16).
[out]	plaintext	Output buffer (must be at least ciphertext_len bytes).
[in,out]	plaintext_len	In: capacity, Out: actual plaintext length.

Returns: 0 on success, -1 on failure (including tag mismatch).

◆ _csilk_symmetric_encrypt()

int _csilk_symmetric_encrypt	(	csilk_ctx_t *	c,
		const uint8_t *	key,
		size_t	key_len,
		const uint8_t *	plaintext,
		size_t	plaintext_len,
		const uint8_t *	iv,
		size_t	iv_len,
		uint8_t *	ciphertext,
		size_t *	ciphertext_len,
		uint8_t *	tag,
		size_t	tag_len
	)

Internal: Symmetric encrypt using the context's cipher driver or the built-in OpenSSL AES-256-GCM implementation.

Parameters

	c	Request context (for driver lookup, may be NULL).
	key	Encryption key (must be 32 bytes for AES-256).
	key_len	Key length.
	plaintext	Data to encrypt.
	plaintext_len	Plaintext length.
	iv	12-byte initialisation vector (nonce).
	iv_len	IV length (must be 12 for GCM).
[out]	ciphertext	Output buffer (must be at least plaintext_len bytes).
[in,out]	ciphertext_len	In: capacity, Out: actual ciphertext length.
[out]	tag	16-byte authentication tag buffer.
	tag_len	Tag buffer size (must be 16).

Returns: 0 on success, -1 on failure.

◆ _csilk_verify()

int _csilk_verify	(	csilk_ctx_t *	c,
		const char *	public_key,
		size_t	pub_len,
		const uint8_t *	data,
		size_t	data_len,
		const uint8_t *	signature,
		size_t	sig_len
	)

Internal: Verify a signature using the context's cipher driver or the built-in OpenSSL RSA-PSS implementation.

Parameters

c	Request context (for driver lookup, may be NULL).
public_key	PEM-encoded RSA public key.
pub_len	Public key length.
data	Original signed data.
data_len	Data length.
signature	Signature to verify.
sig_len	Signature length.

Returns: 0 on valid signature, -1 on invalid or error.

◆ csilk_base64_encode()

void csilk_base64_encode	(	const uint8_t *	src,
		size_t	len,
		char *	out
	)

Encode raw bytes as a standard Base64 string per RFC 4648.

Encode raw bytes as a standard Base64 string.

Processes input in 3-byte groups, producing 4 Base64 characters each. Padding with '=' is added if the input length is not a multiple of 3. The output string is null-terminated.

Parameters

src	Input byte buffer.
len	Input length in bytes.
out	[out] Output buffer (must be large enough: 4 * ceil(len/3) + 1).

Note: The caller must ensure out has sufficient capacity. The worst-case output length is ((len + 2) / 3) * 4 + 1.

◆ csilk_base64url_decode()

int csilk_base64url_decode	(	const char *	src,
		uint8_t *	out
	)

Decode a Base64URL-encoded string back to raw bytes.

Decode a Base64URL (RFC 4648 §5) string to raw bytes.

The decoding process is the inverse of Base64URL encoding:

Replace URL-safe characters ('-', '_') with standard Base64 chars ('+', '/').
Restore padding '=' characters so the length is a multiple of 4.
Decode the resulting standard Base64 using a reverse lookup table.

The reverse lookup maps each Base64 character (A-Z, a-z, 0-9, +, /) back to its 6-bit value. Characters outside this set (including whitespace) cause an immediate error return (-1). The '=' padding character terminates decoding early.

Parameters

src	Base64URL-encoded input string (null-terminated).
out	[out] Output buffer for decoded bytes.

Returns: The number of decoded bytes on success, or -1 on invalid input (non-Base64 characters) or allocation failure.

Note: The caller should ensure out is large enough (at least strlen(src) * 3 / 4 + 1 bytes).

◆ csilk_base64url_encode()

void csilk_base64url_encode	(	const uint8_t *	src,
		size_t	len,
		char *	out
	)

Encode raw bytes as a Base64URL string per RFC 4648 §5 (URL-safe).

Encode raw bytes as a Base64URL (RFC 4648 §5) string.

Base64URL is the same as standard Base64 but replaces: '+' → '-' (URL-safe, as '+' is treated as space in URL query strings) '/' → '_' (URL-safe, as '/' has path separator meaning) '=' → '' (omitted — padding is unnecessary because length is inferred)

The output is produced by first encoding with standard Base64, then character-substituting and stripping padding.

Parameters

src	Input byte buffer.
len	Input length in bytes.
out	[out] Output buffer (must be large enough for the padded Base64 result + 1).

Note: The output is NOT padded with '='. The length can be inferred from strlen(out).

◆ csilk_generate_uuid()

void csilk_generate_uuid ( char * buf )

Generate a random UUID version 4 string in the standard 8-4-4-4-12 format.

Generate a random UUID v4 string (standalone, no context needed).

UUID v4 (RFC 4122 §4.4) uses random or pseudo-random bytes for all 128 bits, with specific bits reserved for the version and variant:

Field Bits Purpose time_low 32 Random time_mid 16 Random time_hi_ver 16 Version (4 bits) + random (12 bits) clock_seq_hi 8 Variant (2 bits) + random (6 bits) clock_seq_low 8 Random node 48 Random

Format: xxxxxxxx-xxxx-4xxx-yxxx-xxxxxxxxxxxx where '4' indicates RFC 4122 version 4 (random UUID). where 'y' has the top 2 bits set to '10' (RFC 4122 variant).

Reads 16 random bytes from /dev/urandom. If /dev/urandom is unavailable, falls back to rand() (which is NOT cryptographically secure). Sets the UUID version nibble (4) and variant bits (10xx) per RFC 4122.

Parameters

buf	[out] 37-byte buffer to receive the UUID string (36 hex chars + 4 hyphens + null terminator).

Note: The output format is: xxxxxxxx-xxxx-4xxx-yxxx-xxxxxxxxxxxx

Warning: The fallback to rand() is NOT cryptographically secure. On systems without /dev/urandom, CSILK_CRYPTO_DRIVER should supply randomness.

◆ csilk_hmac_sha256()

void csilk_hmac_sha256	(	const uint8_t *	key,
		size_t	key_len,
		const uint8_t *	data,
		size_t	data_len,
		uint8_t	out[32]
	)

Compute HMAC-SHA256 as defined in RFC 2104.

Compute HMAC-SHA256 (keyed-hash message authentication code).

HMAC (Hash-based Message Authentication Code) provides both data integrity and authenticity via a shared secret. The construction is:

HMAC(K, m) = SHA256((K' XOR opad) || SHA256((K' XOR ipad) || m))

where:

K' is the key, hashed with SHA256 if longer than 64 bytes (block size).
ipad = 0x36 repeated 64 times (inner padding).
opad = 0x5C repeated 64 times (outer padding).
|| denotes concatenation.

The double-hashing protects against length-extension attacks on the underlying hash function. The ipad/opad XOR ensures that the inner and outer hashes use distinct keys derived from the same secret.

Parameters

key	HMAC secret key.
key_len	Key length in bytes.
data	Input message data.
data_len	Message length in bytes.
out	[out] 32-byte output buffer for the HMAC digest.

◆ csilk_sha1_final()

void csilk_sha1_final	(	csilk_sha1_ctx *	context,
		uint8_t	digest[20]
	)

Finalize the SHA-1 hash and produce the 20-byte digest.

Finalise the SHA-1 hash and write the 20-byte digest.

Pads the message according to RFC 3174 (SHA-1 specification), appends the 64-bit message length, and outputs the final hash digest. After this call, the context should not be used without re-initialization.

Parameters

context	SHA-1 context with accumulated data.
digest	[out] 20-byte buffer to receive the hash digest.

◆ csilk_sha1_init()

void csilk_sha1_init ( csilk_sha1_ctx * context )

Initialize a SHA-1 hashing context with the standard initial hash values.

Initialise a SHA-1 hashing context.

Sets the five state words to the SHA-1 initial constants and resets the bit count to zero. Must be called before the first csilk_sha1_update().

Parameters

context SHA-1 context to initialize (must not be NULL).

◆ csilk_sha1_update()

void csilk_sha1_update	(	csilk_sha1_ctx *	context,
		const uint8_t *	data,
		size_t	len
	)

Feed data into the SHA-1 hashing context for incremental hashing.

Feed data into the SHA-1 hashing context.

Processes the input data in 64-byte blocks, updating the context's state. Partial blocks are buffered until the next call or csilk_sha1_final().

Parameters

context	SHA-1 context (initialized via csilk_sha1_init()).
data	Input data buffer.
len	Length of input data in bytes.

Note: Can be called multiple times with successive data chunks.

◆ csilk_sha256_final()

void csilk_sha256_final	(	csilk_sha256_ctx *	context,
		uint8_t	digest[32]
	)

Finalize the SHA-256 hash and produce the 32-byte digest.

Finalise the SHA-256 hash and write the 32-byte digest.

Pads the message according to FIPS 180-4, appends the 64-bit message length, and outputs the final 256-bit (32-byte) hash digest.

Parameters

context	SHA-256 context with accumulated data.
digest	[out] 32-byte buffer to receive the hash digest.

◆ csilk_sha256_init()

void csilk_sha256_init ( csilk_sha256_ctx * context )

Initialize a SHA-256 hashing context with the standard initial hash values.

Initialise a SHA-256 hashing context.

Sets the eight state words to the SHA-256 initial constants and resets the bit count to zero.

Parameters

context SHA-256 context to initialize (must not be NULL).

◆ csilk_sha256_update()

void csilk_sha256_update	(	csilk_sha256_ctx *	context,
		const uint8_t *	data,
		size_t	len
	)

Feed data into the SHA-256 hashing context for incremental hashing.

Feed data into the SHA-256 hashing context.

Processes the input data in 64-byte blocks, updating the context's state. Partial blocks are buffered. Tracks the total bit count for final padding.

Parameters

context	SHA-256 context (initialized via csilk_sha256_init()).
data	Input data buffer.
len	Length of input data in bytes.

◆ resolve_cipher()

static csilk_cipher_driver_t * resolve_cipher ( csilk_ctx_t * c )

static

◆ sha1_transform()

static void sha1_transform	(	uint32_t	state[5],
		const uint8_t	buffer[64]
	)

static

Internal: process a single 64-byte block through the SHA-1 compression function.

Performs the SHA-1 round computation on a 512-bit message block, updating the 5-word hash state. Implements the standard SHA-1 algorithm with four rounds (20 steps each) using the functions f(), k constants, and message schedule expansion.

Parameters

state	[in/out] 5-element hash state array (updated in-place).
buffer	64-byte (512-bit) message block to process.

◆ sha256_transform()

static void sha256_transform	(	uint32_t	state[8],
		const uint8_t	data[64]
	)

static

Process a single 64-byte block through the SHA-256 compression function (FIPS 180-4 §6.2.2).

The SHA-256 compression function operates on a 256-bit (8-word) state and a 512-bit (64-byte) message block:

Message Schedule (w[0..63]): The first 16 words are the message block in big-endian. Words 16-63 are expanded using: w[i] = gamma1(w[i-2]) + w[i-7] + gamma0(w[i-15]) + w[i-16] where gamma0 and gamma1 are the "lowercase sigma" diffusion functions.
State initialisation: a..h = state[0..7].
Compression loop (64 rounds): Each round computes: T1 = h + Sigma1(e) + Ch(e,f,g) + K[i] + w[i] T2 = Sigma0(a) + Maj(a,b,c) a..h = (T1+T2, a, b, c, d+T1, e, f, g) The K constants are the first 32 bits of the fractional parts of the cube roots of the first 64 primes (nothing-up-my-sleeve numbers).
State update: state[n] += working variable (a..h).

Parameters

state	[in/out] 8-element hash state (updated in-place).
data	64-byte (512-bit) message block to process.

Variable Documentation

◆ b64_table

const char b64_table[] = "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/"

static

Standard Base64 alphabet per RFC 4648 §4.

The alphabet uses 64 ASCII characters: A-Z (indices 0-25), a-z (26-51), 0-9 (52-61), '+' (62), '/' (63). Each group of 3 input bytes (24 bits) is encoded as 4 Base64 characters (6 bits each). If the input length is not a multiple of 3, padding '=' characters are added.

◆ csilk_default_cipher_driver

csilk_cipher_driver_t csilk_default_cipher_driver

extern

Default cipher driver vtable mapping all operations to the OpenSSL-backed implementations above.

Installed by the cipher subsystem as the default driver. Callers can override individual operations by building a custom driver struct with different function pointers for specific needs (e.g., hardware-backed keys).

◆ k256

const uint32_t k256[]

static

Initial value:

= {
    0x428a2f98, 0x71374491, 0xb5c0fbcf, 0xe9b5dba5, 0x3956c25b, 0x59f111f1, 0x923f82a4, 0xab1c5ed5,
    0xd807aa98, 0x12835b01, 0x243185be, 0x550c7dc3, 0x72be5d74, 0x80deb1fe, 0x9bdc06a7, 0xc19bf174,
    0xe49b69c1, 0xefbe4786, 0x0fc19dc6, 0x240ca1cc, 0x2de92c6f, 0x4a7484aa, 0x5cb0a9dc, 0x76f988da,
    0x983e5152, 0xa831c66d, 0xb00327c8, 0xbf597fc7, 0xc6e00bf3, 0xd5a79147, 0x06ca6351, 0x14292967,
    0x27b70a85, 0x2e1b2138, 0x4d2c6dfc, 0x53380d13, 0x650a7354, 0x766a0abb, 0x81c2c92e, 0x92722c85,
    0xa2bfe8a1, 0xa81a664b, 0xc24b8b70, 0xc76c51a3, 0xd192e819, 0xd6990624, 0xf40e3585, 0x106aa070,
    0x19a4c116, 0x1e376c08, 0x2748774c, 0x34b0bcb5, 0x391c0cb3, 0x4ed8aa4a, 0x5b9cca4f, 0x682e6ff3,
    0x748f82ee, 0x78a5636f, 0x84c87814, 0x8cc70208, 0x90befffa, 0xa4506ceb, 0xbef9a3f7, 0xc67178f2}

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ ch

◆ gamma0

◆ gamma1

◆ maj

◆ rol

◆ ror

◆ sigma0

◆ sigma1

Function Documentation

◆ _csilk_asymmetric_decrypt()

◆ _csilk_asymmetric_encrypt()

◆ _csilk_generate_keypair()

◆ _csilk_generate_uuid()

◆ _csilk_hmac_sha256()

◆ _csilk_sign()

◆ _csilk_symmetric_decrypt()

◆ _csilk_symmetric_encrypt()

◆ _csilk_verify()

◆ csilk_base64_encode()

◆ csilk_base64url_decode()

◆ csilk_base64url_encode()

◆ csilk_generate_uuid()

◆ csilk_hmac_sha256()

◆ csilk_sha1_final()

◆ csilk_sha1_init()

◆ csilk_sha1_update()

◆ csilk_sha256_final()

◆ csilk_sha256_init()

◆ csilk_sha256_update()

◆ resolve_cipher()

◆ sha1_transform()

◆ sha256_transform()

Variable Documentation

◆ b64_table

◆ csilk_default_cipher_driver

◆ k256
